1834 Telephone Entry System with Enhanced Features
1834 Telephone Entry System with Enhanced Features
SKU:183-b2f4c4
Enhanced 1834 Telephone Entry System for single door/gate control with 3000 phone storage, live transactions, and UL 294/ETL compliance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
1834 Telephone Entry System with Enhanced Features
$2,499.99
Quantity: 1
Claim Your Seller Account
1834 Telephone Entry System with Enhanced Features
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

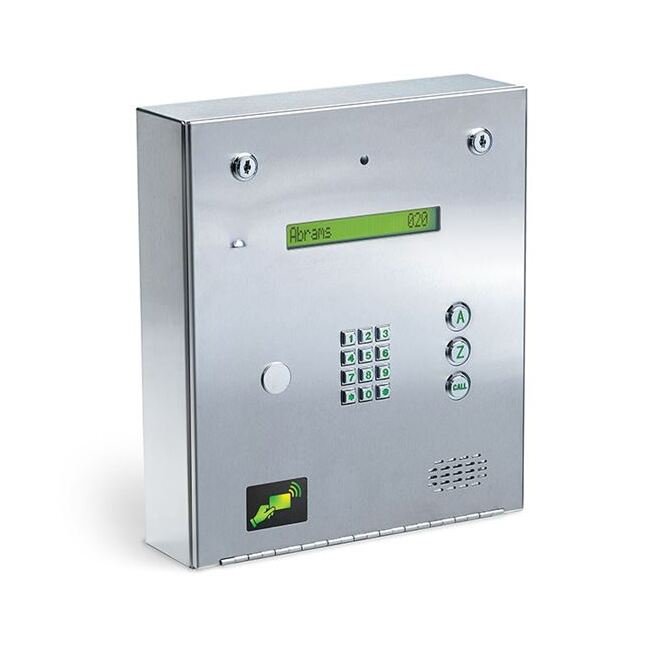

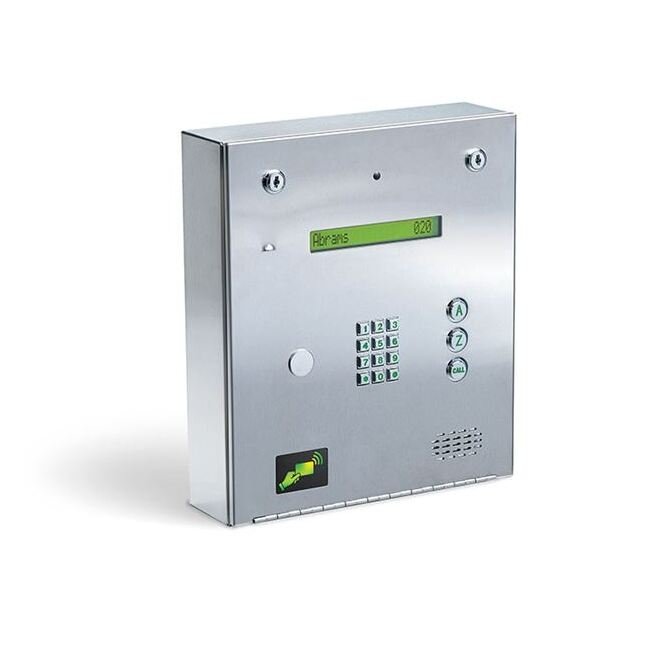

The 1834 Telephone Entry System is a robust solution designed for applications requiring control of a single door or gate. With the ability to store up to 3000 phone numbers and names, this system offers advanced features like 8 hold open time zones, live transaction capability, and a built-in directory display. It is compliant with industry standards such as Underwriters' Laboratories (UL) 294 and Edison Testing Laboratories (ETL) Listed, ensuring reliability and security for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information

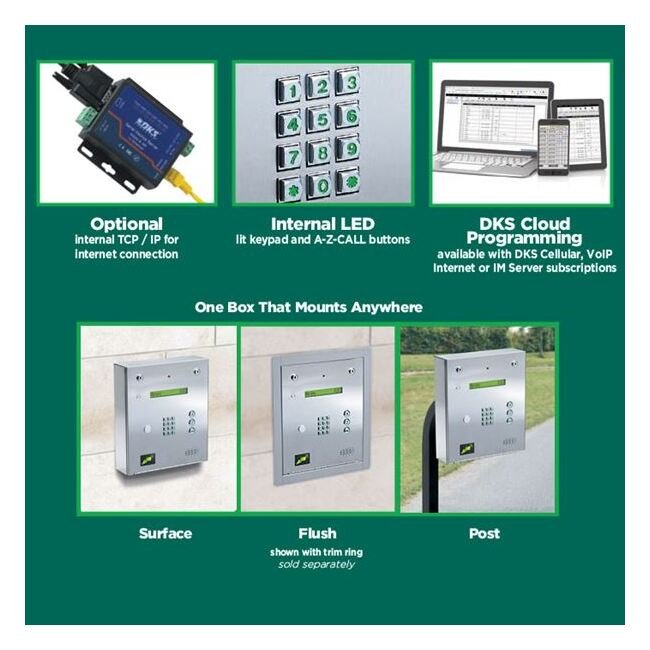

The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages

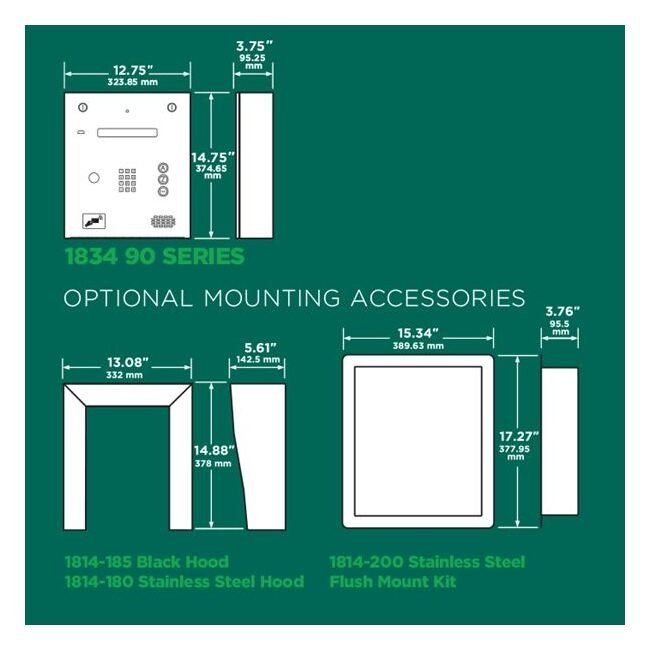

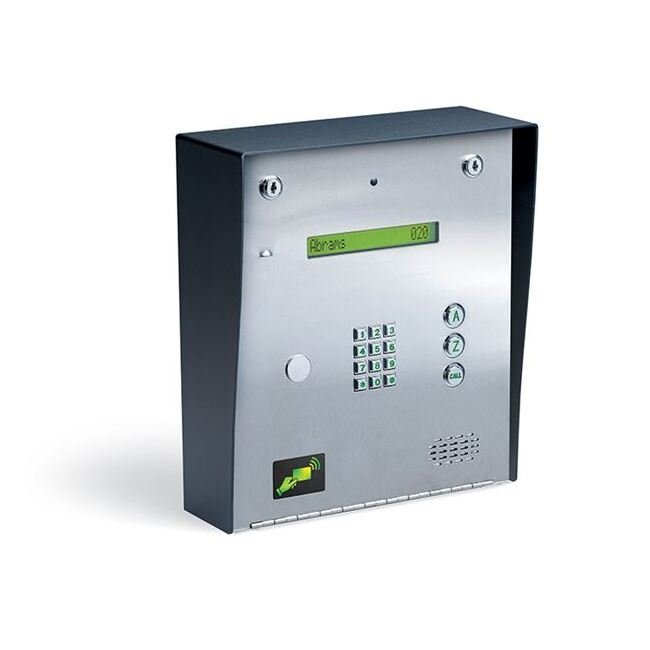

The 1834 90 Series stores up to 3000 phone numbers and can control two (2) access points. The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection. The 1834 is still available in the original 80 Series (surface and flush mount) housings, click the button below to view the 80 Series product page.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialMixed Use Buildings
Key Features Key Features
The 1834 Telephone Entry System can be connected for voice and programming by any of these methods:Cellular 4G-LTE service (note 1)VoIP (note 2)POTS - Plain Old Telephone Service (note 3)Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using - IM Server Modem (subscription required). DoorKing® does not recommend using a POTS line for programming the telephone entry system. DoorKing® can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.Large easy to use A and Z scroll buttons.One Touch "CALL" button.Built-in single-line LCD directory display.Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Live Streaming.Live transactions.8000 event transaction buffer.Database import/export capability.LED Lighting illuminates keypad.Built-in clock/calendar.Holiday schedule.Hold open time zones.Built-in postal lock provision.
Memory Options Memory Options
255 Area Codes | 3000 Phone Numbers
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)
Specifications Alternating Current Ac Power Supply
16 V
Specifications Alternating Current Ac Transformer Voltage
16 V
Specifications Apparent Power
20 V·A
Specifications Built In Directory
Single-Line Liquid Crystal Display (LCD)
Specifications Call Button
Yes
Specifications Closed Circuit Television Cctv Camera Option
Optional High-Resolution Camera Kits
Specifications Communication
True Full Duplex Communication
Specifications Database Importexport Feature
Available
Specifications Digit Dialing
10 | 11
Specifications Elevator Control Capability
No
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
Available
Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
Additional CCV equipment and cabling required
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Other Options
Door Control: 2 Doors
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
Technical Specifications Technical Specifications
True Full Duplex Communication.Stores up to 3000 telephone numbers and names.Stores up to 255 area codes.Transaction buffer stores last 8000 events.8 hold open time zones.4-digit entry codes, one for each telephone number.2 form "C" dry contact relays.Single-line directory display uses super-twist LCD with 1/2-inch characters.EEPROM memory chip.16 VAC, 20 VA power transformer supplied.FCC (US): DUF6VT-12874-OT-TDOC (CAN): 1736 4528 ACompliant with UL 294. ETL listed.
