1835 Telephone Entry & Access Control System
1835 Telephone Entry & Access Control System
SKU:183-9b816f
Enhanced 1835 Telephone Entry & Access Control System - Secure, Expandable, and Compliant
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
1835 Telephone Entry & Access Control System
$1,599.99
Quantity: 1
Claim Your Seller Account
1835 Telephone Entry & Access Control System
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1835 Telephone Entry & Access Control System from the 1830 Series offers a comprehensive turn-key solution for secure access management. With the ability to store up to 3000 phone numbers, 8000 device codes, and expand control to 48 wired access points, this system ensures robust security measures. Featuring options for cellular, VoIP, or legacy POTS connections, along with advanced features like live transactions, anti-pass back, and LED lighting, this system is ideal for residential complexes, commercial buildings, and institutional facilities. Compliant with UL 294 and ETL standards, the 1835 system provides reliable, user-friendly access control for diverse applications.
Product Specifications
Additional Information Additional Information

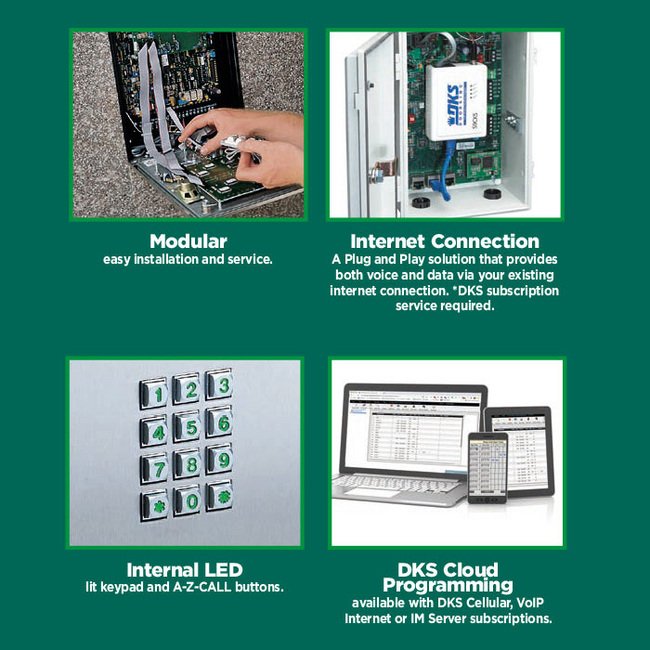

The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages

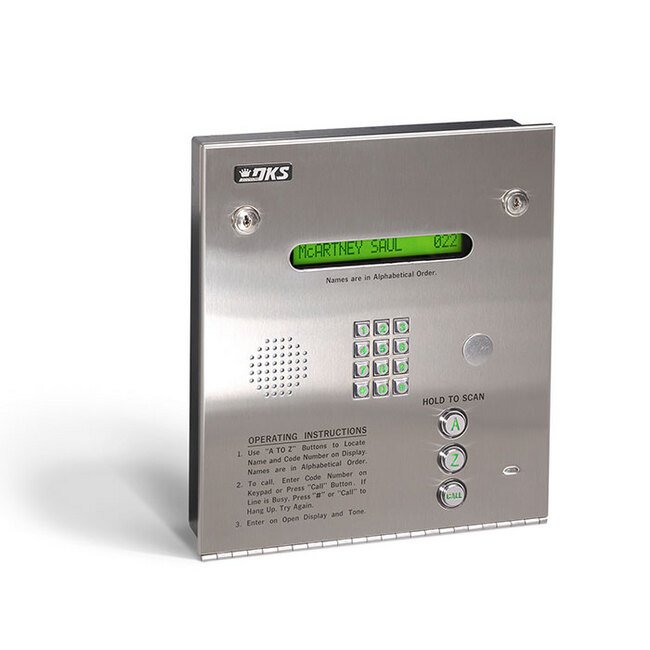

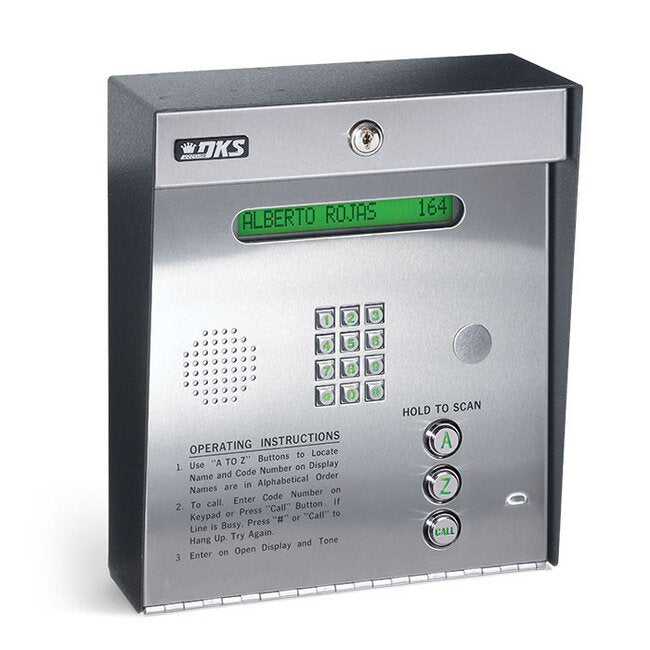

The 1835 80 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly). The 80 Series is available in Surface or Flush mount styles. The 1835 is also available in the new 90 Series housing,
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialMixed Use Buildings
Key Features Key Features
The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:Cellular 4G-LTE service (note 1) VoIP (note 2) POTS - Plain Old Telephone Service (note 3)Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using the IM Server Modem (subscription required). Large easy to use A and Z scroll buttons.One Touch "CALL" button.Built-in single-line LCD directory display.Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 with a wireless connection).Live Streaming.Live transactions.Anti-pass back.<8000 event transaction buffer.31 Security (permission levels)- 29 Programmable (2 fixed levels).Database import/export capability.LED Lighting illuminates keypad.Built-in clock/calendar.Holiday schedule.Hold open time zones.Entry code time zones.Built-in postal lock provision.
Memory Options Memory Options
255 Area Codes | 3000 Phone Numbers
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)
Specifications Alternating Current Ac Power Supply
16 V
Specifications Alternating Current Ac Transformer Voltage
16 V
Specifications Anti Pass Back
Yes
Specifications Apparent Power
20 V·A
Specifications Built In Directory
Single-Line Liquid Crystal Display (LCD)
Specifications Call Button
Yes
Specifications Closed Circuit Television Cctv Camera Option
Camera Ready: Optional B&W or Color Closed-Circuit Television (CCTV) Camera
Specifications Communication
True Full Duplex Communication
Specifications Database Importexport Feature
Available
Specifications Digit Dialing
10 | 11
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Available
Specifications Elevator Control Capability
Available
Specifications Handset Available
Hands Free Voice Operation (Optional Handset)
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
Available
Specifications Maximum Tracker Expansion Capability
Door Control: 3 Entry Points

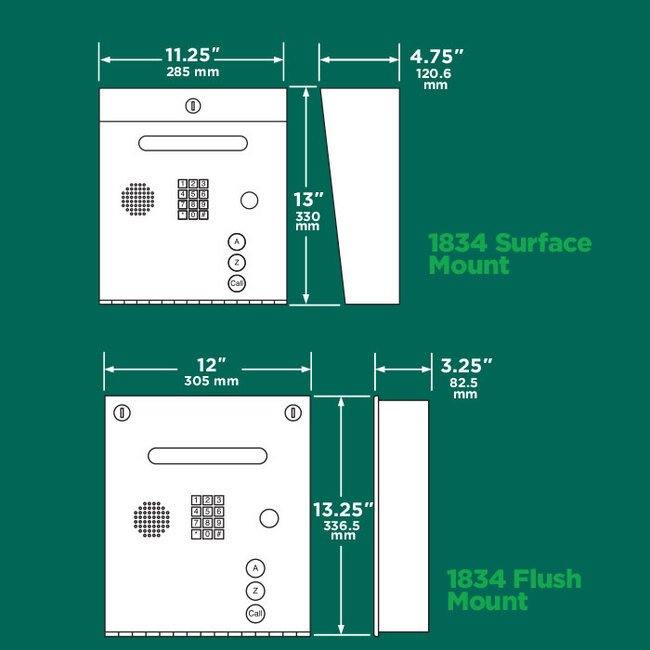

Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
May require additional Closed-Circuit Television (CCTV) equipment
Specifications Note For Maximum Tracker Expansion Capability
Expands up to 48 with wired tracker boards; 24 with wireless tracker boards.
Specifications Number Of Card Device Codes
8000
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
3
Specifications Number Of Security Permission Levels
31
Specifications Number Of Transformers
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programmable Facility Codes
10
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
