The 185 Ampere Maximum Inductive Alternating Current 3 Pole Contactor from Shamrock Controls is a reliable and durable solution for various applications. With a rated insulation voltage of 1500V and adherence to standards like BSEN80947, IEC60947-1, and UL, this contactor offers robust performance. Suitable for a wide range of voltages and frequencies, it ensures efficient operation even in demanding environments.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
55 V·A
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Rated Control Circuit Voltage At
24 to 600 V

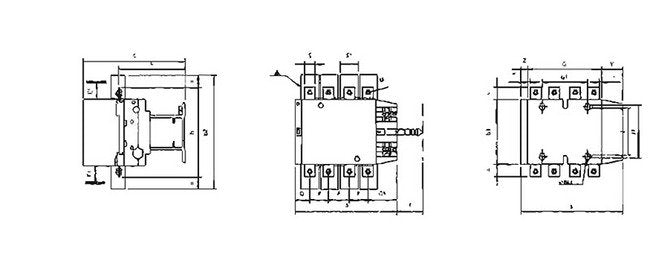

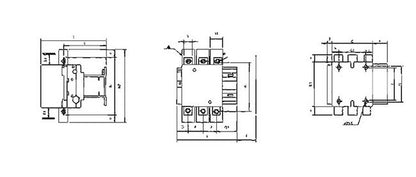

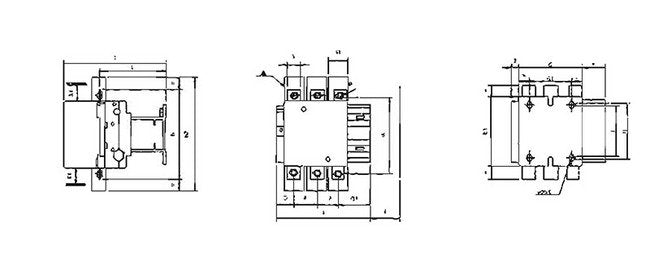

Dimensions Diameter
M8
Dimensions Dimension A
168.5 mm
Dimensions Dimension B
174 mm
Dimensions Dimension B1
137 mm
Dimensions Dimension B2
305 mm
Dimensions Dimension C
181 mm
Dimensions Dimension G
111 mm
Dimensions Dimension G1
80 mm
Dimensions Dimension I
130 mm
Dimensions Dimension J
106 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
113.5 mm
Dimensions Dimension M
154 mm
Dimensions Dimension P
40 mm
Dimensions Dimension Q
29 mm
Dimensions Dimension Q1
59.5 mm
Dimensions Dimension S
20 mm
Dimensions Dimension S1
34 mm
Dimensions Dimension Y
44 mm
Dimensions Dimension Z
13.5 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
15 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
25 x 3 mm
Pole Characteristics Bolt Diameter
8 mm²
Pole Characteristics Cable With Lug Size
150 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
50 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
60 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
125 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
150 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
12 W
