18A Series: .125 Board Hole x .125 Chassis Side Circuit Board Supports
18A Series: .125 Board Hole x .125 Chassis Side Circuit Board Supports
SKU:01C-f34370
Secure and releasable mounting solution for circuit boards. Easy installation with snap-lock feature. Durable Nylon 66 material, RoHS compliant, and ASTM D4066, PA111 certified.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
18A Series: .125 Board Hole x .125 Chassis Side Circuit Board Supports
$12.99
Quantity: 1
Claim Your Seller Account
18A Series: .125 Board Hole x .125 Chassis Side Circuit Board Supports
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

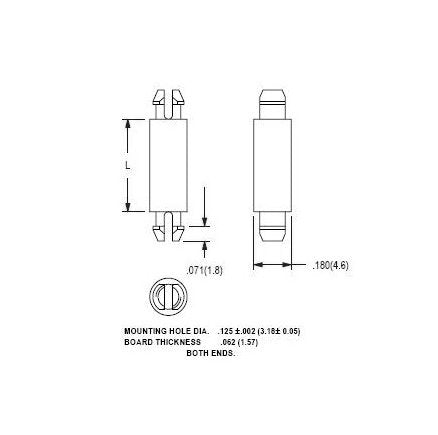

The 18A Series .125 Board Hole x .125 Chassis Side Circuit Board Supports offer easy manual installation with snap-lock functionality for secure yet removable mounting. These supports feature a mounting hole diameter of .125 inches (3.2mm) on both ends, crafted from durable Nylon 66 material meeting UL94V-2 standards (UL94V-0 available upon request). RoHS compliant and ASTM D4066, PA111 certified, this product ensures reliability in temperatures ranging from -40 to 185F (-40 to 85C). Enhance your circuit board assembly with these dependable and versatile supports.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
