18A Series Board Hole x Chassis Side Circuit Board Supports
18A Series Board Hole x Chassis Side Circuit Board Supports
SKU:01C-4abf90
Securely mount circuit boards with ease using 18A Series Supports. Snap-lock, releasable design. Nylon 66 construction. RoHS Compliant. Temp Range: -40 to 185F
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
18A Series Board Hole x Chassis Side Circuit Board Supports
$24.99
Quantity: 1
Claim Your Seller Account
18A Series Board Hole x Chassis Side Circuit Board Supports
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

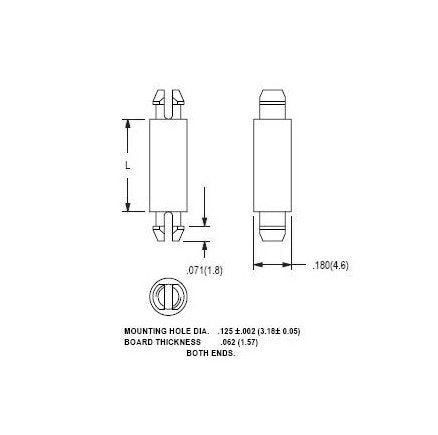

The 18A Series Circuit Board Supports feature easy hand installation with snap-lock functionality for secure yet releasable mounting. Each support has a .125 (3.2mm) mounting hole diameter on both ends and comes in a natural color. Packed in 1000/bag, these supports are constructed from Nylon 66 UL94V-2 material, with UL File No. E41938. They meet ASTM D 4066, PA111 standards and are RoHS Compliant. Operating temperature ranges from -40 to 185F (-40 to 85C), ensuring durability and reliability in various environments.
Product Specifications
Specifications Dim L
.562 (14.3) inches (mm)
