18A Series Board Supports: .125 Board Hole x .125 Chassis Side
18A Series Board Supports: .125 Board Hole x .125 Chassis Side
SKU:01C-e21000
Secure and easy-to-install 18A Series Board Supports with 0.125" mounting hole, Nylon 66 material, RoHS compliant, -40 to 185F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
18A Series Board Supports: .125 Board Hole x .125 Chassis Side
$29.99
Quantity: 1
Claim Your Seller Account
18A Series Board Supports: .125 Board Hole x .125 Chassis Side
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

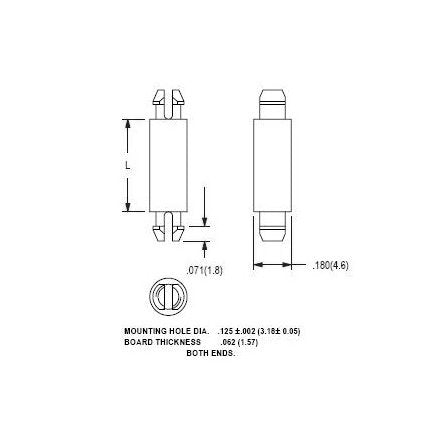

The 18A Series Board Supports are designed for easy manual installation with snap-locking capability for secure positioning yet easy release. With a mounting hole diameter of 0.125 inches (3.2mm) on both ends, these supports come in a natural color and are packaged in quantities of 1000 per bag. Constructed from Nylon 66 UL94V-2 material, they offer high durability and reliability. These supports are RoHS compliant and suitable for a temperature range of -40 to 185F (-40 to 85C), making them ideal for various electronic applications.
Product Specifications
Specifications Dim L
.812 (20.6) inches (mm)
