18A Series Nylon Circuit Board Supports
18A Series Nylon Circuit Board Supports
SKU:01C-7fe91f
Secure and versatile 18A Series Nylon Circuit Board Supports for easy installation and release. Packaged in 1000/bag, RoHS compliant with .125
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
18A Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
18A Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

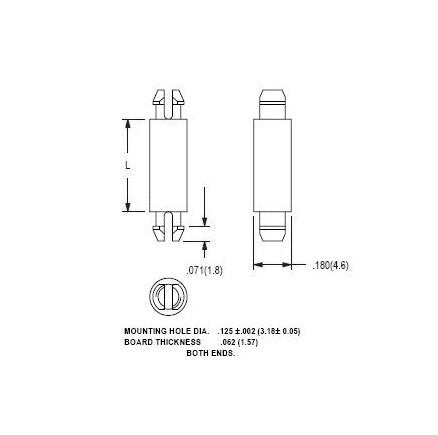

The 18A Series Nylon Circuit Board Supports are designed to offer easy installation by hand, with snap-lock capabilities for secure positioning and easy release when needed. Featuring a mounting hole diameter of .125 inches (3.2mm) on both ends, these supports come in a natural color and are packaged in quantities of 1000 per bag. Constructed from durable Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), these supports offer reliability and versatility for various applications.
Product Specifications
Specifications Dim L
1.38 (34.9) inches (mm)
