12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector for demanding environments. With double-ended plug and .070 Si-coated FEP wire.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
18kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$29.99
Quantity: 1
Claim Your Seller Account
18kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

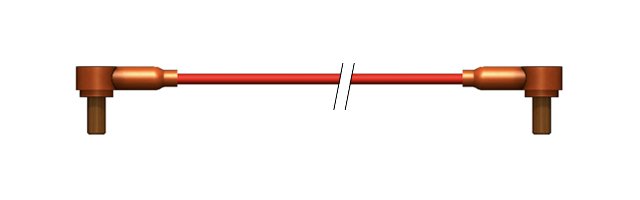

The 12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector is engineered for demanding environments, featuring a double-ended, right angle plug with .070 Si-coated FEP wire for enhanced durability. With a ground level rating from sea level to 10,000 ft and a current rating of 5 Amps, this connector is suitable for a wide range of applications including High Voltage Power Supplies, Semi-Conductor Equipment, Radar Systems, and more. It meets industry-standard specifications, operating temperature ranges from -55 to 125°C, and offers a 18 kVDC test voltage for reliable performance.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation

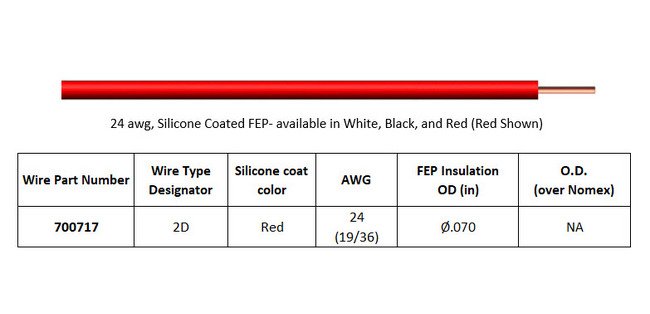

Silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Double-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
