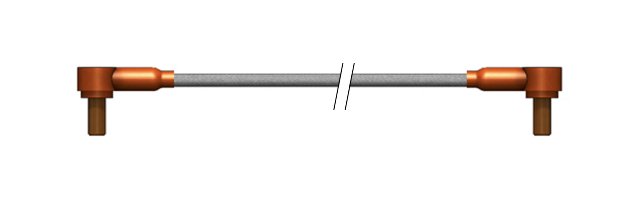

Highly durable 18kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector for reliable high voltage applications. Double-ended plug with secure connections and high insulation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
18kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$39.99
Quantity: 1
Claim Your Seller Account
18kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 18kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector is a durable and reliable solution for high voltage applications. With a ground level rating from sea level to 10,000 ft and an altitude reduced pressure rating of 70,000 ft, this connector ensures optimal performance in various environments. It features a double-ended plug with etched FEP wire and a Nomex jacket, guaranteeing secure connections and high insulation. With a current rating of 5 Amp and an operating temperature range from -55 to 125 ºC, it is suitable for a wide range of applications including High Voltage Power Supplies, Radar Systems, and Medical instrumentation. This connector is compatible with all push-pull standard PeeWee and PWR connectors and cable assemblies.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

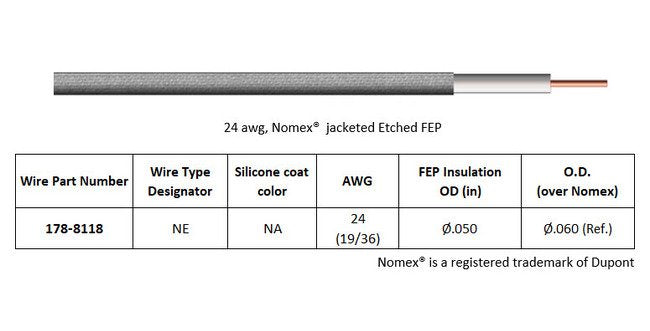

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Double-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
