18kVDC Ruggedized PeeWee Series High Voltage Connector
18kVDC Ruggedized PeeWee Series High Voltage Connector
SKU:HIG-1c0138
The 18kVDC Ruggedized PeeWee Series High Voltage Connector offers reliable performance in demanding applications, ensuring secure connections and safety.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
18kVDC Ruggedized PeeWee Series High Voltage Connector
$49.99
Quantity: 1
Claim Your Seller Account
18kVDC Ruggedized PeeWee Series High Voltage Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

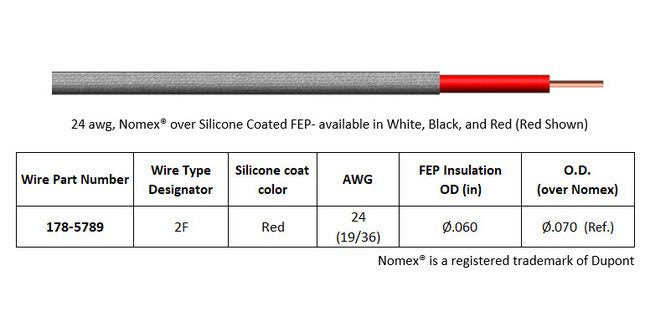

The 18kVDC Ruggedized PeeWee Series High Voltage Connector is designed for demanding applications, featuring a double-ended, right-angle plug with Si-coated FEP wire and a Nomex jacket. With a current rating of 5 Amps, this connector operates in temperatures ranging from -55 to 125 °C. It meets 12kVDC and 18kVDC voltage ratings, and is compatible with various push-pull standard PeeWee and PWR connectors. Ideal for High Voltage Power Supplies, Radar Systems, Medical Equipment, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter
nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Double-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
