18kVDC Ruggedized PeeWee Single Pin Connector
18kVDC Ruggedized PeeWee Single Pin Connector
SKU:HIG-b7b175
High-performing 18kVDC single pin connector for demanding high voltage applications. Durable construction for reliable power transmission.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
18kVDC Ruggedized PeeWee Single Pin Connector
$39.99
Quantity: 1
Claim Your Seller Account
18kVDC Ruggedized PeeWee Single Pin Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series Single Pin Connector is a high-performance solution designed for demanding applications in high voltage environments. With a current rating of 5 Amps and a test voltage of 18 kVDC, this connector ensures reliable power transmission in a wide range of settings. The double-ended plug features a durable black colored Si-Coated FEP wire with Nomex jacket, providing superior insulation and protection. Ideal for High Voltage Power Supplies, Traveling Wave Tubes, Semiconductor Wafer Processing Equipment, and more, this connector meets industry standards for quality and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

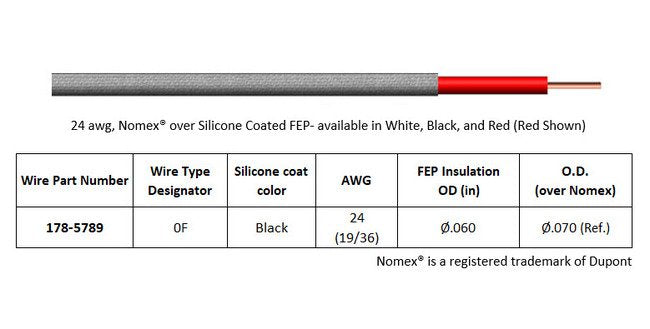

Cable Wire Properties Wire Diameter
nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Straight, Double-Ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
