18mm Tube Male Elbow with 1/2in Thread Size
18mm Tube Male Elbow with 1/2in Thread Size
SKU:SME-2de022
Premium 18mm Tube Male Elbow w/ 1/2in Thread. Durable materials, precise compression, enhanced safety, and efficiency. Compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
18mm Tube Male Elbow with 1/2in Thread Size
$49.99
Quantity: 1
Claim Your Seller Account
18mm Tube Male Elbow with 1/2in Thread Size
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

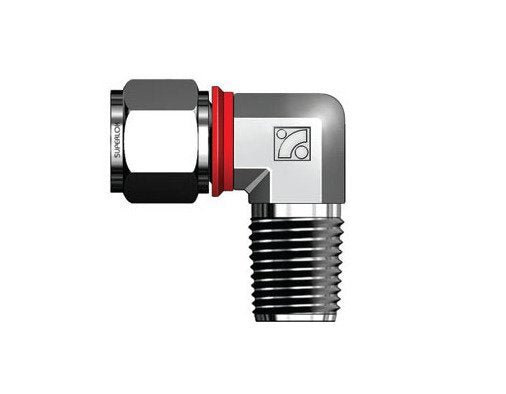

The SMEI Series 18mm Tube Male Elbow with 1/2in Thread Size is expertly designed to connect metric tubes to female ISO tapered threads. Crafted with high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, it ensures durability in various environments. Featuring i-Fitting® components for precise compression, increased safety in high-pressure settings, and improved productivity, this male elbow is a game-changer in the industry. With dimensions designed for optimal performance and easy installation, this product is reliable, efficient, and compliant with stringent procurement standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

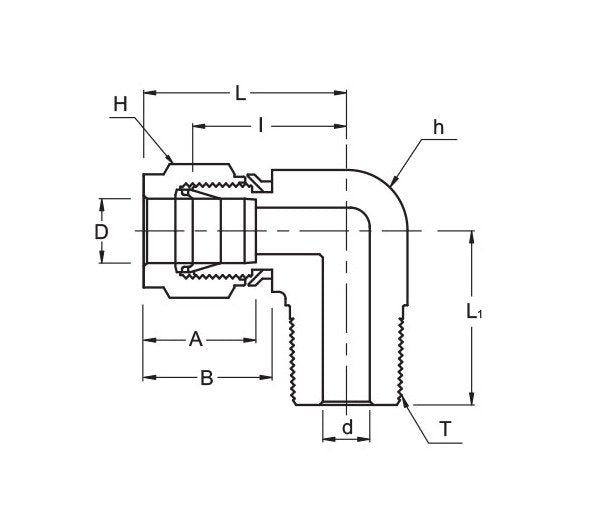

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension L
39.8 mm
Technical Specs Dimension L1
36.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
11.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
30 mm
