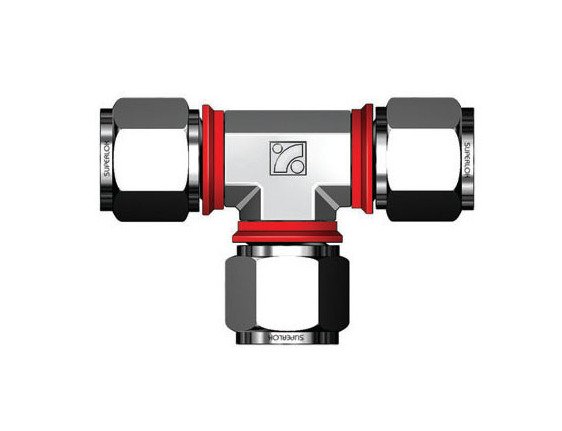

18mm Tube Outside Diameter Union Tee Fitting - SUTI Series
18mm Tube Outside Diameter Union Tee Fitting - SUTI Series
SKU:SUT-c0ecd8
Premium 18mm Union Tee Fitting with i-Fitting® Components for Safety & Efficiency
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
18mm Tube Outside Diameter Union Tee Fitting - SUTI Series
$34.99
Quantity: 1
Claim Your Seller Account
18mm Tube Outside Diameter Union Tee Fitting - SUTI Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUTI Series 18mm Tube Outside Diameter Union Tee Fitting is a high-quality metric tube connector designed for precision and durability. Constructed from a range of materials including Stainless Steel, Alloy 625, Carbon Steel, and more, it offers exceptional corrosion resistance and structural integrity. Featuring innovative i-Fitting® components for perfect compression and enhanced safety, this fitting is ideal for high-pressure and chemical environments, boosting productivity and reducing costs. With dimensions meeting industry standards and a patented design by BMT, this fitting ensures reliable performance and ease of installation.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

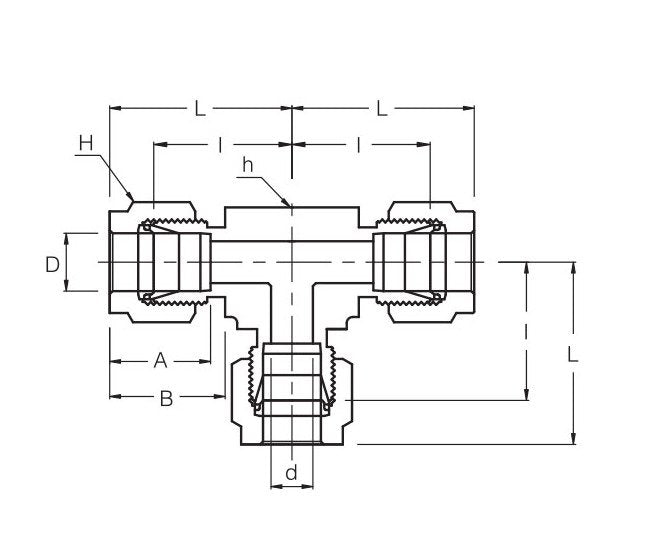

Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension L
38.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
30 mm
