18mm UM10 Grade 3-Hole 30° Precision Carbide Rod

Name: 18mm UM10 Grade 3-Hole 30° Precision Carbide Rod
Brand: Ultra-Met
SKU: SOL-003984
Price: 79.99 USD
Availability: OutOfStock

SKU:SOL-003984

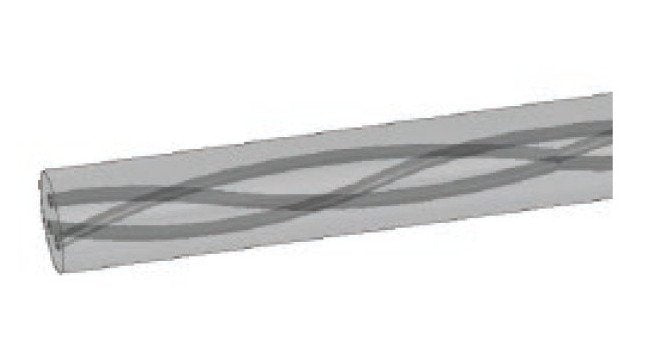

High-precision 18mm UM10 Grade Carbide Rod for industrial applications. Polished finish, 3 holes, 30° angle.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

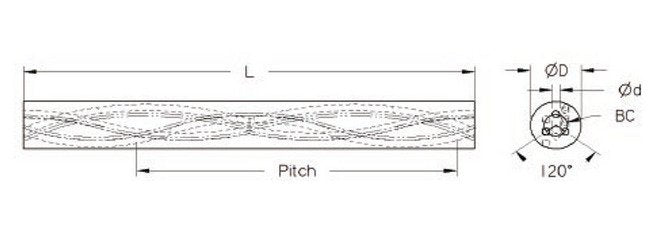

The 18mm UM10 Grade Three Hole 30 Degree Precision Ground Random Length Carbide Rod is a top-quality solution for industrial applications requiring precision and durability. With a polished finish, a diameter of 18mm, and a length of 330mm (+5mm | 0mm tolerance), this carbide rod ensures consistent performance. Featuring a 1.70mm hole size with a tolerance of ±0.25mm, and a between centers (BC) diameter of 9.25mm with a tolerance of ±0.50mm, this rod is crafted for accuracy and reliability. The UM10 carbide grade guarantees long-lasting wear resistance and toughness, meeting the highest industry standards.

Product Specifications

Classifications Between Centers Bc Diameter

9.25 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.50 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

18 mm

Classifications Finish

Polished

Classifications Hole D

1.70 mm

Classifications Hole D Tolerance

0.25 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

97.95 mm

Classifications Shipping Weight

1.41611572 Kilogram
