18mm UM10 Grade Carbide Rod
18mm UM10 Grade Carbide Rod
SKU:SOL-3a5ede
High-precision 18mm UM10 Grade Carbide Rod for industrial machining applications. Polished finish, 2-hole design, ISO h6 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
18mm UM10 Grade Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
18mm UM10 Grade Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

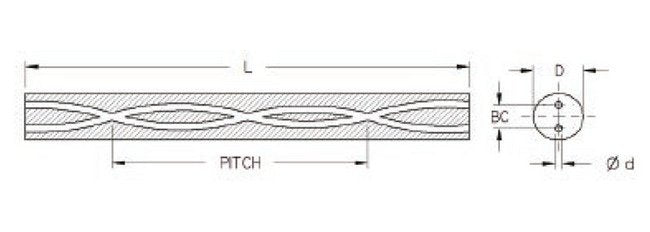

The 18mm UM10 Grade Two Hole Carbide Rod features a polished finish with a precise diameter of 18mm and a length of 330mm (+5mm | 0mm tolerance). It is crafted with a between centers (BC) diameter of 9.15mm, ensuring high precision in machining applications. With a 30-degree pitch and made from high-grade carbide material, this rod offers exceptional durability and performance. Compliant with International Organization for Standardization (ISO) tolerance type h6, it caters to a wide range of industrial needs, making it an ideal choice for precision tooling and manufacturing.
Product Specifications
Classifications Between Centers Bc Diameter
9.15 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
18 mm
Classifications Finish
Polished
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
97.95 mm
Classifications Shipping Weight
1.41611572 Kilogram
