18mm UM6 Grade Precision Ground Carbide Rod with Central Hole

Name: 18mm UM6 Grade Precision Ground Carbide Rod with Central Hole
Brand: Ultra-Met
SKU: SOL-ae6082
Price: 89.99 USD
Availability: OutOfStock

SKU:SOL-ae6082

Premium 18mm UM6 Grade Precision Ground Carbide Rod for precise engineering needs.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

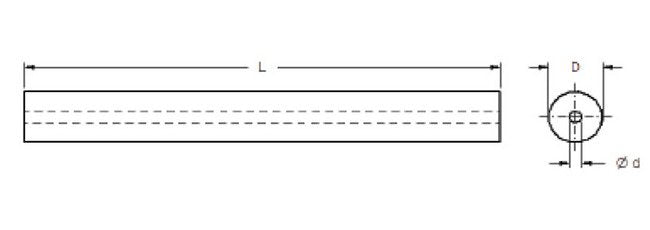

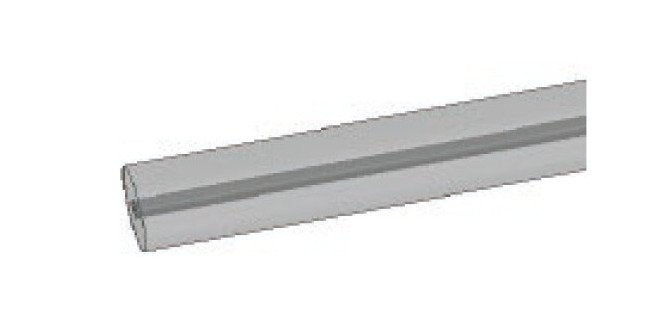

The 18mm UM6 Grade Precision Ground Carbide Rod with Central Hole is a top-tier choice for precision engineering applications. Manufactured with Ultra-Met® brand carbide material, it boasts a polished finish and a precisely drilled 3.00mm central hole. With a diameter tolerance of +0.05mm, length of 330mm (+5mm | 0mm tolerance), and concentricity of 0.3mm, this carbide rod sets a high standard for quality and performance. Compliant with ISO h6 tolerance type and weighing 1.301150649 kilograms, it offers superior durability and reliability for industrial requirements.

Product Specifications

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM6

Classifications Concentricity

0.3 mm

Classifications Diameter

18 mm

Classifications Finish

Polished

Classifications Hole D

3.00 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

1.301150649 Kilogram

18mm UM6 Grade Precision Ground Carbide Rod with Central Hole
