18mm UM6 Grade Two Hole 40 Degree Precision Ground Carbide Rod
18mm UM6 Grade Two Hole 40 Degree Precision Ground Carbide Rod
SKU:SOL-2381b6
High-precision 18mm UM6 Grade Carbide Rod for industrial applications. Polished, durable, and ISO h6 compliant.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
18mm UM6 Grade Two Hole 40 Degree Precision Ground Carbide Rod
$69.99
Quantity: 1
Claim Your Seller Account
18mm UM6 Grade Two Hole 40 Degree Precision Ground Carbide Rod
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

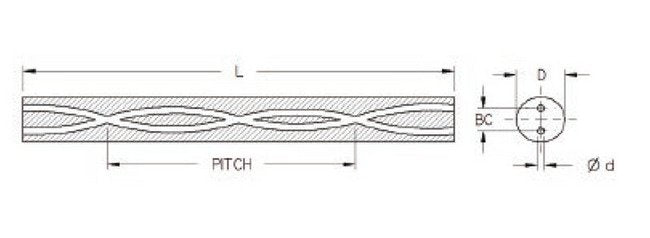

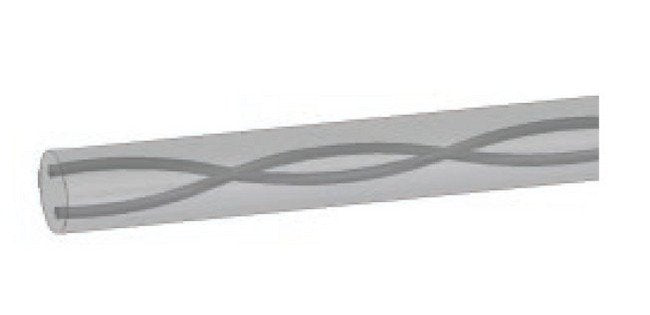

The 18mm UM6 Grade Two Hole 40 Degree Precision Ground Carbide Rod is meticulously crafted and polished to perfection. With a diameter of 18mm and a length of 330mm (+5mm | 0mm tolerance), this carbide rod features a precise hole diameter of 1.40mm with a tolerance of ±0.25mm. The UM6 carbide grade ensures exceptional durability and performance, meeting ISO tolerance type h6 standards. Ideal for industrial applications requiring high precision and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
5.9 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
18 mm
Classifications Finish
Polished
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
67.39 mm
Classifications Shipping Weight
1.41611572 Kilogram
