18V Wall Plug-In Switch Mode Power Supply with Interchangeable Input Plug
18V Wall Plug-In Switch Mode Power Supply with Interchangeable Input Plug
SKU:WAL-12b46a
Versatile 18V Wall Plug-In Switch Mode Power Supply with Interchangeable Plugs & VI Efficiency for reliable performance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
18V Wall Plug-In Switch Mode Power Supply with Interchangeable Input Plug
$34.99
Quantity: 1
Claim Your Seller Account
18V Wall Plug-In Switch Mode Power Supply with Interchangeable Input Plug
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

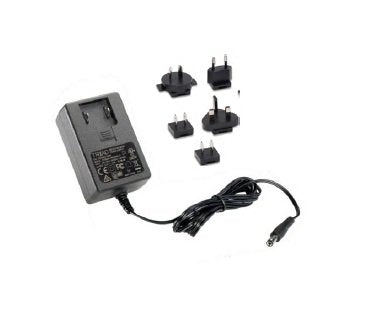

The 18V Wall Plug-In Switch Mode Power Supply is a versatile solution suitable for a wide range of applications. Featuring a Positive Polarity Center and interchangeable input plugs, this power supply offers seamless compatibility and reliable performance. With an output voltage of 18.0V and a maximum efficiency rating of VI, this power supply ensures optimal power delivery while meeting stringent efficiency standards. Additionally, it is designed with safety features such as overvoltage and short circuit protection. Backed by a 5-year warranty, this power supply guarantees durability and long-term reliability.
Product Specifications

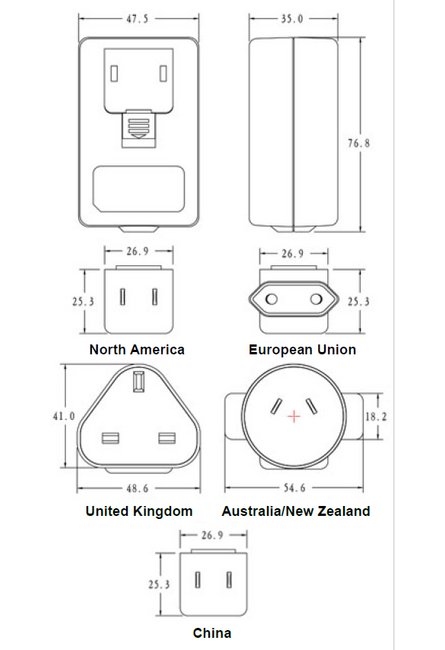

Case Dimensions Depth D
1.38 in | 35.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.87 in | 47.50 mm
Eisa 2007cec Compliance Eisa 2007cec Compliance
This power supply meets the minimum efficiency requirements per Department of Energy and California Energy Commission.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
83.50 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
50 to 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
200 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Meets minimum level VI efficiency.
Electrical Specifications At 25 Degree Celsius C Temperature Out
1.33 A
Electrical Specifications At 25 Degree Celsius C Temperature Typ
82.68 %
Environmental Specifications Non Condensing Relative Operating H
5 to 95 %
Environmental Specifications Operating Temperature At Full Load
0 to +45 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
6 ft | 22 AWG

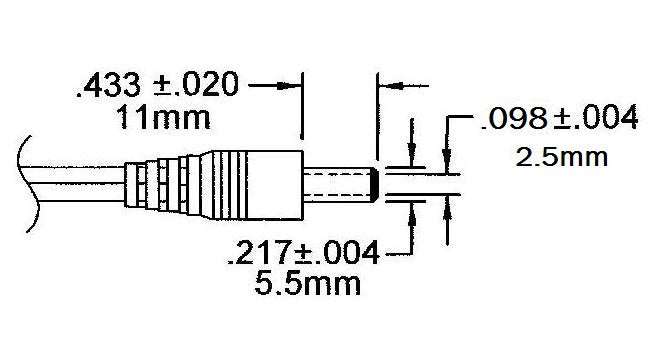

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Reliability Specifications Dielectric Strength
Hi-Pot - 4242 VDC/3 secs
Reliability Specifications Leakage Current At 264 Vac
<0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Safety And Emi Safety And Emi
UL: 62368-1 Class II, Double InsulatedUL File Number: E345519TUV: IEC 62368-1:2014 (Second Edition)AS/NZS: AS/NZS 62368.1:2018 & AS/NZS 3112:2017GS (S50452256): EN 62368-1: 2014 + A11RCM: RCM201901745 Rev01EMI standard: FCC part15 Subpart B, ICES-003 Issue 6, ANSI C63.4-2014Over voltage and short circuit protected
Specifications 2007 Eisa Efficiency
VI
Specifications Polarity Center
Positive
Specifications Type
Switchmode
