19.30mm Diameter UM12 Grade Carbide Hole Rod
19.30mm Diameter UM12 Grade Carbide Hole Rod
SKU:SOL-ce1513
High-quality 19.30mm carbide rod for precision machining applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
19.30mm Diameter UM12 Grade Carbide Hole Rod
$59.99
Quantity: 1
Claim Your Seller Account
19.30mm Diameter UM12 Grade Carbide Hole Rod
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

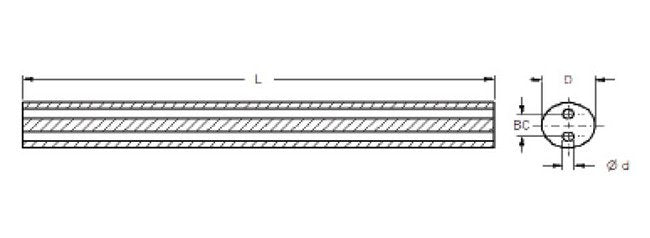

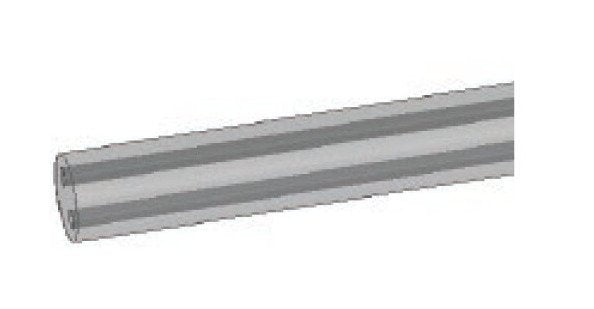

The 19.30mm Diameter UM12 Grade Carbide Hole Rod is a high-quality unground standard rod designed for precision machining applications. It features a 19.30mm diameter with a tolerance of +0.3mm, a length of 330mm with a tolerance of +5mm, and a 2.00mm hole diameter with a tolerance of ±0.20mm. The carbide grade UM12 ensures durability and performance, making it an ideal choice for industrial settings requiring reliable tooling solutions.
Product Specifications
Classifications Between Centers Bc Diameter
9.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
19.30 mm
Classifications Diameter Tolerance
+0.3 mm | 0.5 mm
Classifications Finish
Unground
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.445617339 Kilogram
