19.30mm UM10 Grade Carbide Rod with 30° Two Hole BC Design

Name: 19.30mm UM10 Grade Carbide Rod with 30° Two Hole BC Design
Brand: Ultra-Met
SKU: SOL-7d2b37
Price: 69.99 USD
Availability: OutOfStock

SKU:SOL-7d2b37

High precision 19.30mm UM10 Grade Carbide Rod for exact machining needs.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

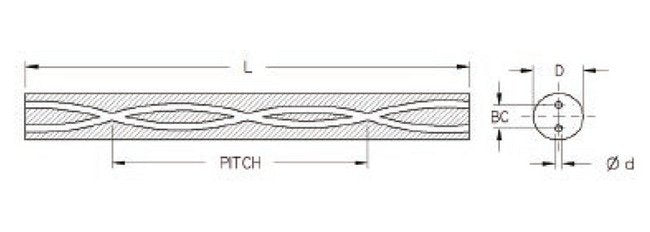

The 19.30mm UM10 Grade Carbide Rod is meticulously crafted for precision machining applications. Featuring a 30° two-hole design and a reduced BC diameter of 9.7mm, this unground rod ensures exceptional accuracy. With a carbide grade of UM10, it offers superior wear resistance and longevity. This random length rod, with precise diameter and hole tolerances, is ideal for industries demanding exacting standards.

Product Specifications

Classifications Between Centers Bc Diameter

9.7 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.40 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

19.30 mm

Classifications Diameter Tolerance

+0.3 mm | 1.0 mm

Classifications Finish

Unground

Classifications Hole D

2.00 mm

Classifications Hole D Tolerance

0.25 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

103.39 mm

Classifications Shipping Weight

1.566665218 Kilogram
