19 Series Dual Locking Board Support
19 Series Dual Locking Board Support
SKU:01C-2ef362
Securely install boards with the 19 Series Dual Locking Support. Durable Nylon 66 UL94V-2 material, RoHS compliant, and easy-to-repair design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
19 Series Dual Locking Board Support
$29.99
Quantity: 1
Claim Your Seller Account
19 Series Dual Locking Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

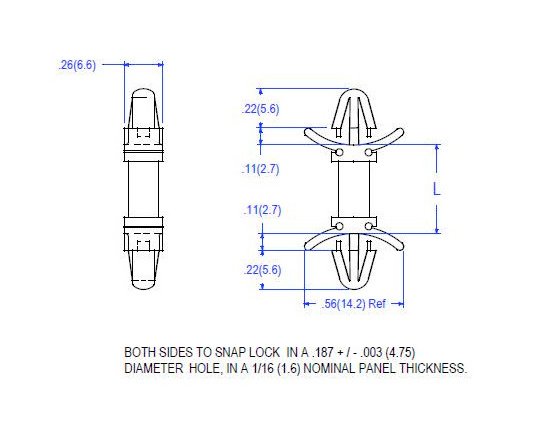

The 19 Series Dual Locking Board Support is designed for secure installation on circuit boards with a mounting hole diameter of .187 inches. Made of Nylon 66 UL94V-2 material, this support is durable and reliable, with a temperature range of -40 to 185F. It features a releasable design for easy repairs and comes in a pack of 500 units. Compliant with RoHS standards, this support meets ASTM D4066 and PA0113 specifications.
Product Specifications
Specifications Board Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
