19 Series Dual Locking Board Support Set
19 Series Dual Locking Board Support Set
SKU:01C-29e6cf
Enhance circuit board stability with the 19 Series Dual Locking Board Supports. Easy installation, reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
19 Series Dual Locking Board Support Set
$29.99
Quantity: 1
Claim Your Seller Account
19 Series Dual Locking Board Support Set
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

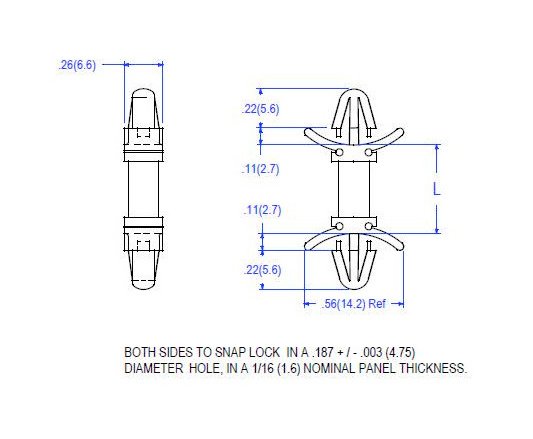

The 19 Series Dual Locking Board Support Set is designed for easy installation by hand, featuring a .187 (4.8mm) mounting hole diameter for both board and chassis ends. Made of Nylon 66 UL94V-2 material, with UL94V-0 option available upon request, these supports are releasable for quick repairs. Compliant with RoHS standards and ASTM D 4066, PA0113, this set is ideal for circuit board applications with a temperature range of -40 to 185F (-40 to 85C). Each set comes in a pack of 500 for convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
