19 Series Dual-Locking Board Support with .187 Board Hole x .187 Chassis Hole

Name: 19 Series Dual-Locking Board Support with .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-38aee9
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-38aee9

Secure circuit board support with tool-free installation, .187 board hole, and chassis hole. Meets ASTM and RoHS standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

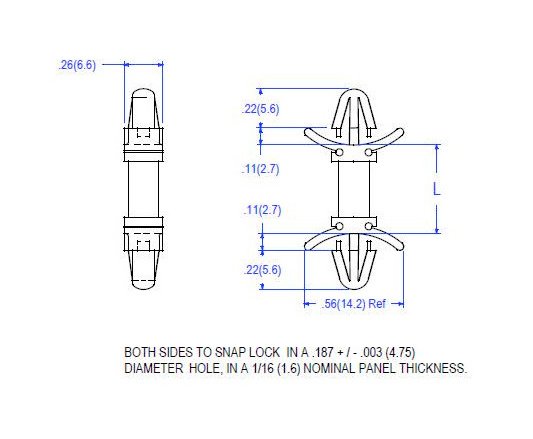

The 19 Series Dual-Locking Board Support is a premium solution for secure and reliable circuit board installations. Featuring a .187 (4.8mm) board hole and chassis hole, this support offers easy, tool-free installation and reusability for repair needs. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), it meets stringent ASTM and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), this support ensures durability and performance in various environments.

Product Specifications

Specifications Board Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Color

Natural

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

19 Series Dual-Locking Board Support with .187 Board Hole x .187 Chassis Hole
