19 Series Dual Locking Circuit Board Supports
19 Series Dual Locking Circuit Board Supports
SKU:01C-364f8e
Reliable dual locking circuit board supports with .187" mounting hole diameter. Easy to install and repair, RoHS compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
19 Series Dual Locking Circuit Board Supports
$14.99
Quantity: 1
Claim Your Seller Account
19 Series Dual Locking Circuit Board Supports
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

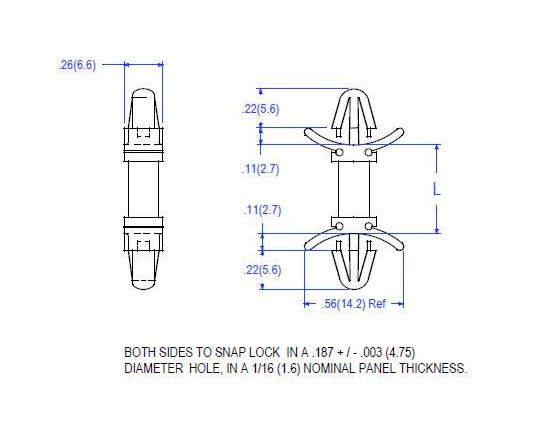

The 19 Series Dual Locking Circuit Board Supports are designed for easy installation by hand, featuring a mounting hole diameter of .187 inches (4.8mm) for both ends. Made of Nylon 66 UL94V-2 material, these board supports are releasable for repairs, ensuring flexibility and convenience in circuit board maintenance. With a temperature range of -40 to 185F (-40 to 85C), these supports offer durability and reliability in various environmental conditions. Meeting ASTM D 4066, PA0113, and RoHS compliance standards, these supports guarantee quality and safety in electronic assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
