19 Series Nylon Board Supports with .187 Board Hole x .187 Chassis Hole
19 Series Nylon Board Supports with .187 Board Hole x .187 Chassis Hole
SKU:01C-ac4320
Get reliable dual locking board supports with .187 board hole x .187 chassis hole, easy to install and RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
19 Series Nylon Board Supports with .187 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
19 Series Nylon Board Supports with .187 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

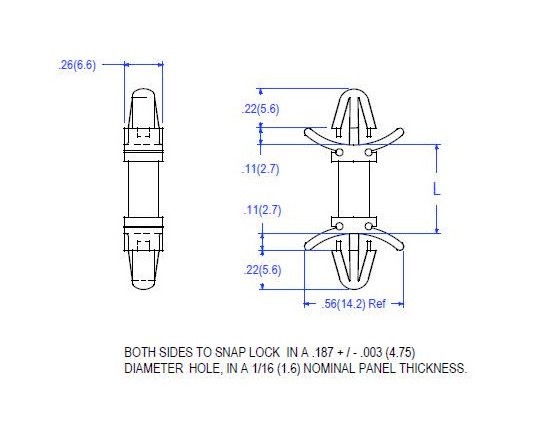

The 19 Series Nylon Board Supports with .187 Board Hole x .187 Chassis Hole offer exceptional dual locking support for circuit boards. Featuring a mounting hole diameter of .187 inches (4.8mm) on both ends, these supports are easily installable by hand and releasable for repairs. Made from Nylon 66 UL94V-2 material, these supports meet rigorous RoHS standards, ensuring compliance with environmental regulations. With a temperature range of -40 to 185F (-40 to 85C), these supports provide reliable performance in various conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.875 (22.2) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
