19 Series Nylon Dual Locking Board Support

Name: 19 Series Nylon Dual Locking Board Support
Brand: All Electronics Hardware
SKU: 01C-8a9155
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-8a9155

Secure circuit boards effortlessly with the 19 Series Nylon Dual Locking Board Support. Easy installation, durable Nylon build, and RoHS compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

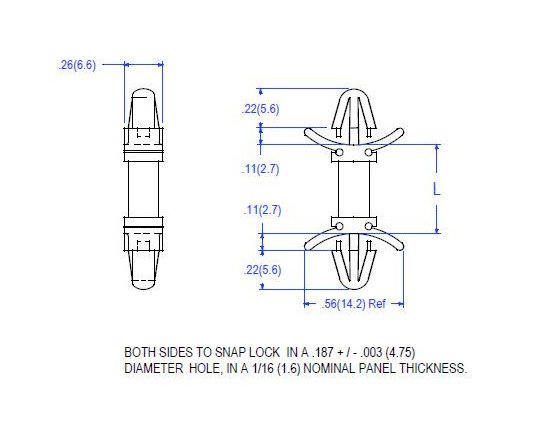

The 19 Series Nylon Dual Locking Board Support is a reliable solution for securing circuit boards in place. Featuring a board hole diameter and chassis hole diameter of .187 inches (4.8mm), this support ensures a firm grip. It is made of Nylon 66 UL94V-2 material, with UL94V-0 variant available upon request. Easy to install manually, this support is releasable for quick repairs. RoHS compliant and ASTM D 4066, PA0113 certified, it offers a temperature range of -40 to 185F (-40 to 85C), making it suitable for a wide range of applications.

Product Specifications

Specifications Board Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Color

Natural

Specifications Dim L

.687 (17.5) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

19 Series Nylon Dual Locking Board Support
