19A Series Circuit Board Support
19A Series Circuit Board Support
SKU:01C-bb012b
High-quality circuit board supports with .156 PCB Hole x .187 Chassis Hole design, UL94V-2 material, and ASTM compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
19A Series Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
19A Series Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

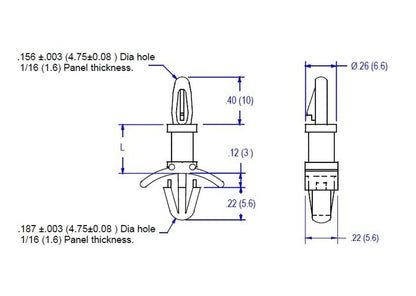

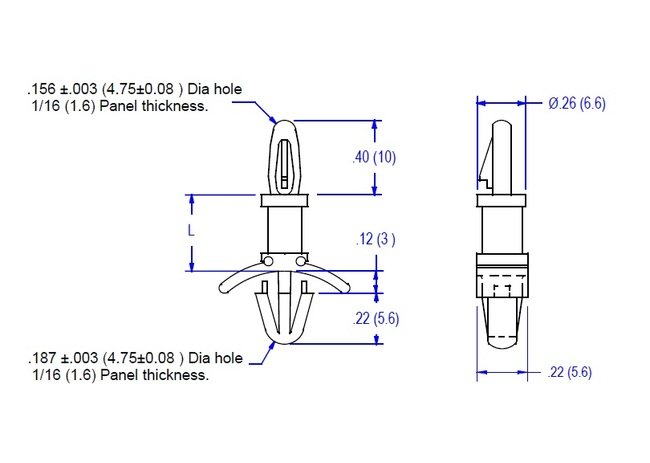

The 19A Series Circuit Board Support features a .156 PCB Hole x .187 Chassis Hole design, providing reliable support for circuit boards. Each pack contains 1000 supports made of Nylon 66 UL94V-2 material, with UL File No. E70062 and RoHS compliance. The supports meet ASTM D 4066 and PA111 standards, ensuring quality and durability. With a temperature range of -40 to 185F (-40 to 85C), they are suitable for a wide range of applications.
Product Specifications
Specifications Dim L 4 Mm
.750 (19) inches (mm)
