19A Series Circuit Board Support .156 Board Hole x .187 Chassis Hole
19A Series Circuit Board Support .156 Board Hole x .187 Chassis Hole
SKU:01C-5e06fc
High-quality Circuit Board Supports with .156 PCB Hole x .187 Chassis Hole, made of durable Nylon 66 UL94V-2 material, ASTM compliant, and RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
19A Series Circuit Board Support .156 Board Hole x .187 Chassis Hole
$59.99
Quantity: 1
Claim Your Seller Account
19A Series Circuit Board Support .156 Board Hole x .187 Chassis Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

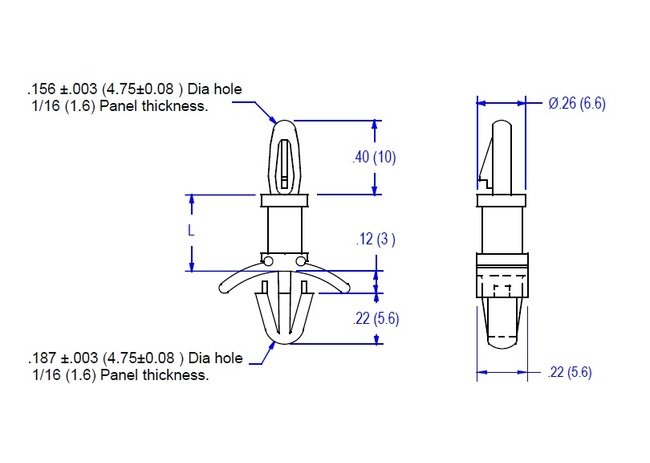

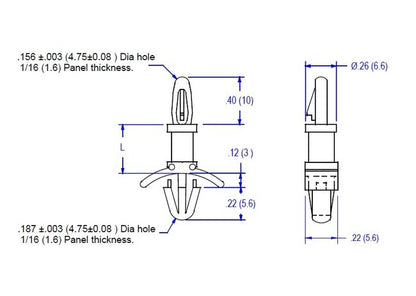

The 19A Series Circuit Board Supports feature a .156 PCB Hole and a .187 Chassis Hole suitable for secure mounting. Each pack contains 1000 supports made of Nylon 66 UL94V-2 material, ensuring durability and reliability. These supports comply with ASTM D 4066, PA111 standards and are RoHS compliant, offering a temperature range of -40 to 185F. With the option for UL94V-0 material by adding 'X' to the part number, these supports meet the highest safety standards for various applications.
Product Specifications
Specifications Dim L 4 Mm
.312 (7.9) inches (mm)
