19C Series Circuit Board Support
19C Series Circuit Board Support
SKU:01C-75471a
Secure and durable circuit board support for .156 PCB holes and .187 chassis holes. Non-lock/press fit design. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
19C Series Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
19C Series Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

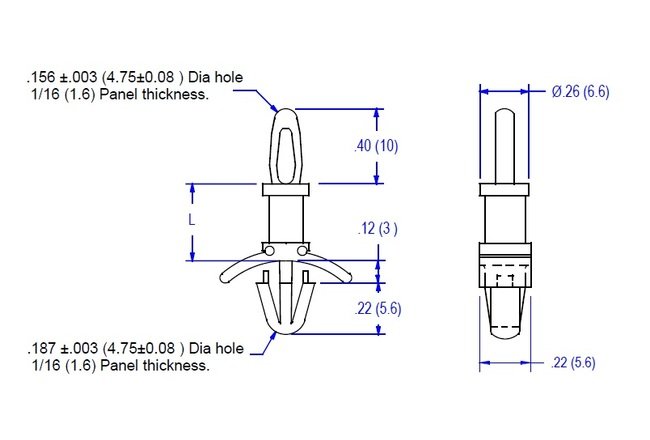

The 19C Series Circuit Board Support is designed for optimal compatibility with .156 PCB holes and .187 chassis holes, ensuring a secure fit and stable support. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available for enhanced fire resistance), this circuit board support offers exceptional durability and reliability for various applications. It features a non-lock/press fit PCB end, suitable for a wide range of electronic projects. With compliance to ASTM D4066, PA111, RoHS standards, and a temperature range of -40 to 185F (-40 to 85C), this circuit board support provides both quality performance and regulatory adherence.
Product Specifications
Specifications Dim L 4 Mm
.875 (22.2) inches (mm)
