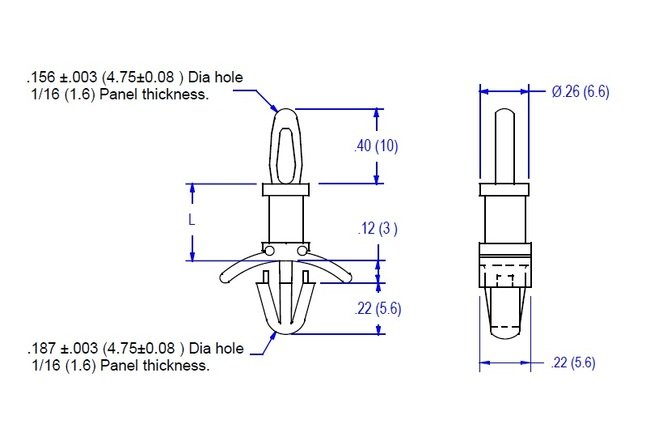

The 19C Series Circuit Board Support Kit is designed with a .156-inch PCB hole and .187-inch chassis hole, ensuring precise compatibility and secure mounting. Made of Nylon 66 UL94V-2 material (with UL94V-0 available as an option), this support kit offers reliable non-lock/press fit PCB end support. With a temperature range of -40 to 185F (-40 to 85C), it guarantees optimal performance in various environments. Compliant with RoHS standards, ASTM D 4066, PA111, and UL File No. E70062, this support kit meets stringent quality and safety requirements for institutional use.
Product Specifications
Specifications Dim L 4 Mm
.437 (11.1) inches (mm)
