19C Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
19C Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
SKU:01C-4cc6b3
Explore our 19C Series Circuit Board Supports with .156 PCB hole x .187 chassis hole for reliable electronic assemblies.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
19C Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
19C Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

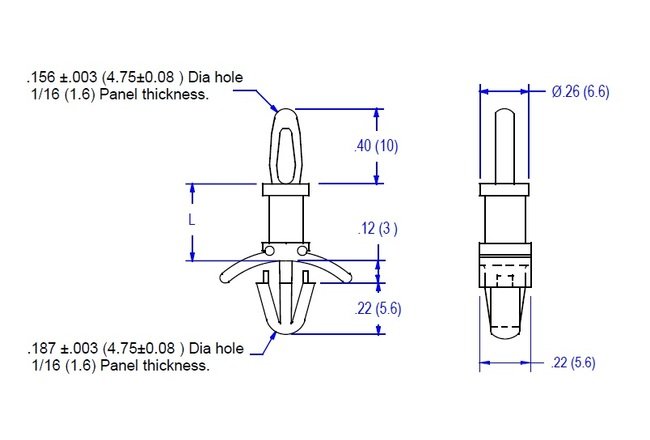

The 19C Series Circuit Board Supports feature a .156 PCB hole and a .187 chassis hole, making them ideal for electronic assemblies. These non-lock/press fit supports are constructed from Nylon 66 UL94V-2 material, with an option for UL94V-0. They come in a pack of 1000 units and comply with RoHS standards, with a temperature range of -40 to 185F (-40 to 85C). ASTM D 4066 and PA111 certifications ensure quality and reliability for your applications.
Product Specifications
Specifications Dim L 4 Mm
.500 (12.7) inches (mm)
