19C Series Circuit Board Supports: .156 PCB Hole x .187 Chassis Hole
19C Series Circuit Board Supports: .156 PCB Hole x .187 Chassis Hole
SKU:01C-283d93
Precision-engineered 19C Series Circuit Board Supports for secure PCB end fit. RoHS compliant and durable Nylon 66 material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
19C Series Circuit Board Supports: .156 PCB Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
19C Series Circuit Board Supports: .156 PCB Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

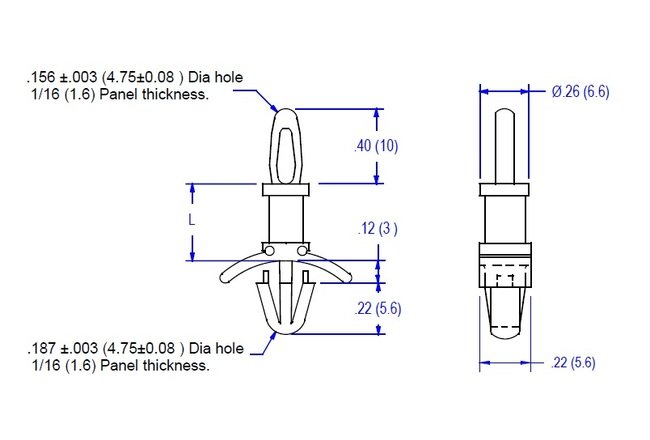

The 19C Series Circuit Board Supports feature a .156 PCB hole and .187 chassis hole design, providing secure non-lock/press fit for PCB ends. Each pack contains 1000 supports made of durable Nylon 66 UL94V-2 material (UL94V-0 available with 'X' in part#), meeting ASTM D 4066, PA111 standards. These supports are RoHS compliant and withstand temperatures ranging from -40 to 185F (-40 to 85C). Ensure stability and reliability in your circuit boards with these precision-engineered supports.
Product Specifications
Specifications Dim L 4 Mm
.625 (15.9) inches (mm)
