19C Series: Non-Lock/Press Fit Circuit Board Support
19C Series: Non-Lock/Press Fit Circuit Board Support
SKU:01C-6e5757

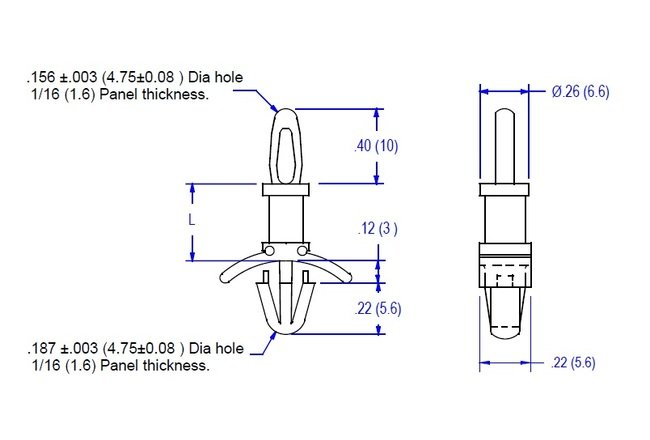

Secure your circuit boards with the 19C Series Circuit Board Support featuring .156 PCB Hole x .187 Chassis Hole. Non-lock/press fit design. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
19C Series: Non-Lock/Press Fit Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
19C Series: Non-Lock/Press Fit Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 19C Series Circuit Board Support offers reliable .156 PCB Hole x .187 Chassis Hole compatibility and features a non-lock/press fit design for secure assembly. Each pack contains 1000 supports made of Nylon 66 material, UL94V-2 compliant (UL94V-0 available). This support is ASTM D 4066, PA111, and RoHS compliant, ensuring quality and safety. With a temperature range of -40 to 185F (-40 to 85C), this support is ideal for various electronic applications.
Product Specifications
Specifications Dim L 4 Mm
1.00 (25.4) inches (mm)
