19mm UM10 Carbide Rod with Two Holes and Precision Ground BC, Random Length

Name: 19mm UM10 Carbide Rod with Two Holes and Precision Ground BC, Random Length
Brand: Ultra-Met
SKU: SOL-ef9538
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-ef9538

High-quality 19mm UM10 Grade Carbide Rod for precision machining, with 2 holes, polished finish, and ISO h6 tolerance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

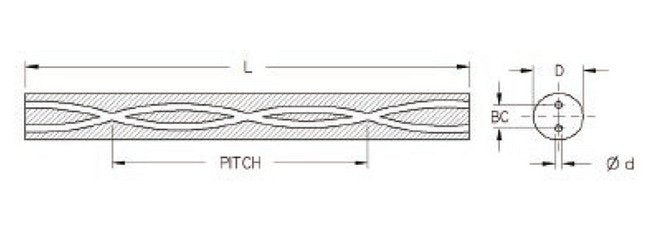

The 19mm UM10 Grade Carbide Rod is meticulously crafted for precision machining applications. With a polished finish, 30-degree precision ground holes (2.00mm), and a BC diameter of 9.7mm, this carbide rod ensures exceptional accuracy. Compliant with ISO tolerance type h6, this rod offers a length of 330mm (+5mm | 0mm) and a pitch of 103.39mm. Weighing 1.57kg, this Ultra-Met® rod adheres to stringent quality standards, making it ideal for industrial usage.

Product Specifications

Classifications Between Centers Bc Diameter

9.7 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.40 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

19 mm

Classifications Finish

Polished

Classifications Hole D

2.00 mm

Classifications Hole D Tolerance

0.25 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

103.39 mm

Classifications Shipping Weight

1.566665218 Kilogram
