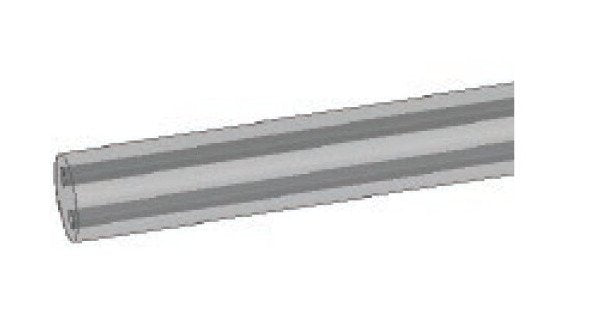

19mm UM12 Precision Ground Carbide Hole Rod

Name: 19mm UM12 Precision Ground Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-b5b838
Price: 89.99 USD
Availability: OutOfStock

SKU:SOL-b5b838

High-precision 19mm UM12 Carbide Hole Rod for industrial applications

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

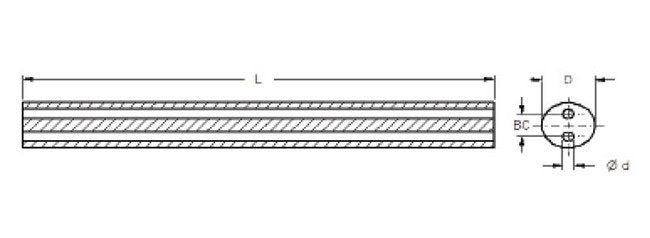

Experience precision at its finest with our 19mm UM12 Grade Precision Ground Standard Between Centers Carbide Hole Rod. With a polished finish and a solid carbide construction, this rod offers a diameter of 19.00mm and a length of 330mm (+5mm | 0mm tolerance). Featuring a 2.00mm hole with a tolerance of ±0.15mm, and a Between Centers Diameter of 9.0mm with a tolerance of 0/-0.30mm, this rod is designed for accuracy and durability. Compliant with ISO tolerance type h6, this rod is ideal for a wide range of applications in industrial settings.

Product Specifications

Classifications Between Centers Bc Diameter

9.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

19.00 mm

Classifications Finish

Polished

Classifications Hole D

2.00 mm

Classifications Hole D Tolerance

0.15 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

1.445617339 Kilogram
