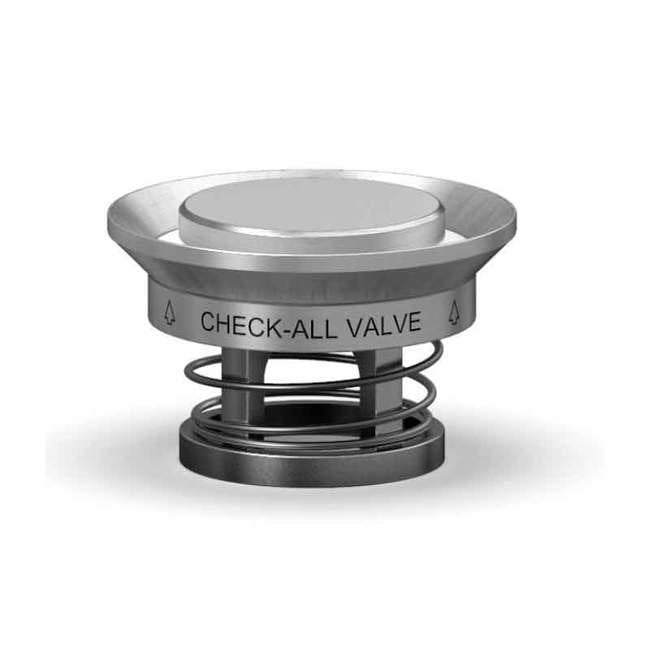

1in UV Style Union Insert Check Valve, 1.50 psi Cracking Pressure

Name: 1in UV Style Union Insert Check Valve, 1.50 psi Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: UVS-d63fbf
Price: 69.99 USD
Availability: OutOfStock

SKU:UVS-d63fbf

Durable 1in UV Style Check Valve with 1.50 psi Cracking Pressure. Reliable, Cost-effective Solution.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1 Inch Nominal Pipe Size UV Style Union Insert Check Valve is a premium-quality valve designed for threaded pipe systems, offering a simple and cost-effective solution for check valve installation. Made from durable 316 Stainless Steel, it ensures reliable performance and longevity. With a standard cracking pressure of 1.50 psi, this valve is suitable for various applications and can be used horizontally or vertically. It complies with European Conformity (CE) and ISO 9001 Certifications, meeting stringent quality standards for institutional and government procurement.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

1 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

1.50 psi

Specifications Valve Style

1in UV Style Union Insert Check Valve, 1.50 psi Cracking Pressure
