2.0 x 4.3 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
2.0 x 4.3 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
SKU:BUL-6028cb
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
2.0 x 4.3 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
$49.99
Quantity: 1
Claim Your Seller Account
2.0 x 4.3 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

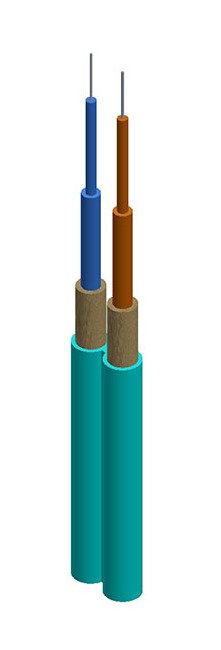

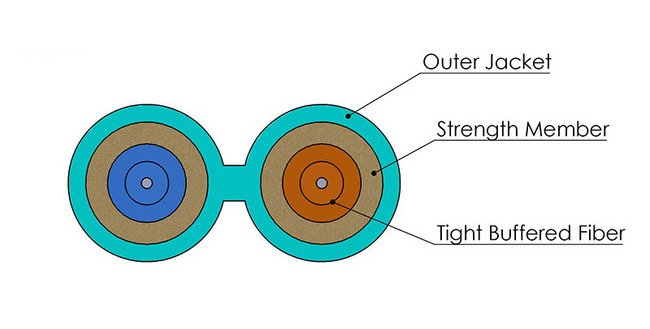

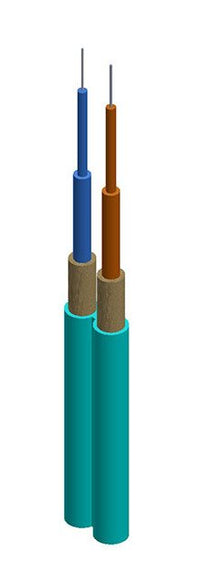

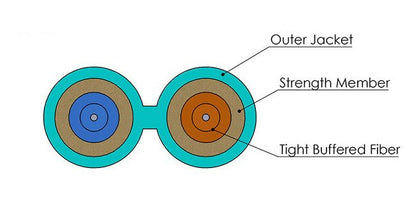

Opticonx duplex zipcord cables utilize two 900 µm tight-buffered fibers surrounded by aramid yarn strength members with a flexible, flame-retardant riser, plenum, or LSZH jacket. These cables are ideal for single fiber connectors, especially those with duplex clips or housings. Choose from a variety of fiber types. Custom print legend available with minimum order.
Product Specifications
Certification
(UL) Type OFNP per the National Electric Code. (ANSI/NFPA 70-1999) Section 770-53(a). For use in Air Return Plenums Transporting Environmental Air. Meets FDDI ANSI X3T9.5, IBM 3044 Channel Extender.
Construction Buffer Color
Blue/Orange
Construction Component Fiber Buffer Diameter
245 µm
Construction Component Thermoplastic Tight Buffer Diameter
900 µm
Construction Jacket Color
Orange
Construction Jacket Material
Flame Retardant Polyvinyl Chloride (PVC)
Construction Optional Color
Aqua | Black | Blue | Brown | Green | Orange | Pink | Red | Slate | Violet | White | Yellow
Construction Strength Member
Dielectric Aramid Yarn Fibers
Mechanical Cable Weight
6.0 kg/km
Mechanical Cable Weight Per 1000 Feet Ft
4.0 lb
Mechanical Major Diameter
0.168 in | 4.3 mm
Mechanical Maximum Installation Tensile Load
60 lb | 267 N
Mechanical Maximum Operating Tensile Load
15 lb | 67 N
Mechanical Minimum Installation Bend Radius
2.0 in | 5.0 cm
Mechanical Minimum Operating Bend Radius
1.2 in | 3.0 cm
Mechanical Minor Diameter
0.079 in | 2.0 mm
Mechanical Operating Temperature
-20 to 80 ºC | -4 to 176 ºF
Mechanical Storage Temperature
-40 to 80 ºC | -40 to 176 ºF
Print
Opticonx Inc. Optical Fiber Cable (UL) c(UL) Type OFNP 2 Fiber (fiber type) P/N-1930xx-002 dd/mm/yy, sequential marks.
