2.0mm Right Angle High Current Crimp Wire Terminal Plug Socket Pin
2.0mm Right Angle High Current Crimp Wire Terminal Plug Socket Pin
SKU:HIG-2343d1
Versatile 2.0mm Right Angle High Current Socket Pin for secure electrical connections in tight spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
2.0mm Right Angle High Current Crimp Wire Terminal Plug Socket Pin
$24.99
Quantity: 1
Claim Your Seller Account
2.0mm Right Angle High Current Crimp Wire Terminal Plug Socket Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

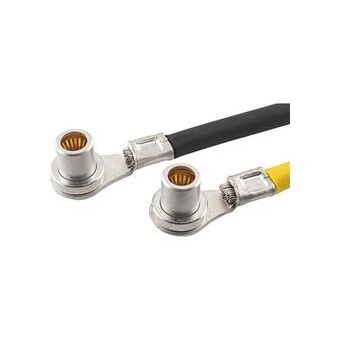

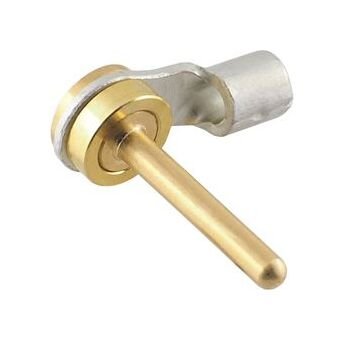

The 2.0mm Right Angle High Current Crimp Wire Terminal Plug Socket Pin features a durable beryllium copper louver ensuring high-reliability connections. Its versatile design allows for easy attachment and detachment from either the top or bottom, even in tight spaces. With maximum current rating of 22A, brass plug and ring with Sn plating over Ni, and copper alloy crimp terminal, this socket pin guarantees secure and durable electrical connections, meeting stringent industry standards for durability, temperature resistance, and electrical performance.
Product Specifications
Materials Crimp Terminal
Copper Alloy, Sn plating over Ni (R2-4S)
Materials Plug
Brass, Sn plating over Ni
Materials Ring
Brass, Sn plating over Ni
Note
Be mindful of the wire's heat resistance.Insert and remove the socket perpendicularly to the plug.If the wire moves easily after insertion, ensure it is securely fastened to prevent displacement.

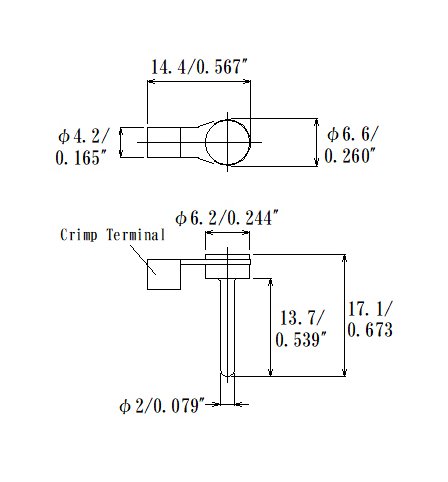

Specifications Acceptable Socket Diameter
2.0 mm | 0.079 in
Specifications Durability
5,000 cycles
Specifications Maximum Contact Resistance
15 mΩ
Specifications Maximum Current Rating A At 25 Degree Celsius C T
22 A
Specifications Maximum Insertion Force
10 N
Specifications Solid Wire
1.40 to 1.82 mm²
Specifications Strand Wire
1.80 to 2.63 mm²
Specifications Temperature Range
-40 to 150 ºC
Specifications Thickness
14 AWG
