2-1/2 45-Degree Zinc-Plated Steel Sealtite Fitting
2-1/2 45-Degree Zinc-Plated Steel Sealtite Fitting
SKU:FIT-6ca036
Corrosion-resistant 2-1/2 45-Degree Zinc-Plated Steel Fitting for liquid-tight conduit installations, IP 66/67 rated, NEC compliant, UL Listed, CSA Certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
2-1/2 45-Degree Zinc-Plated Steel Sealtite Fitting
$29.99
Quantity: 1
Claim Your Seller Account
2-1/2 45-Degree Zinc-Plated Steel Sealtite Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

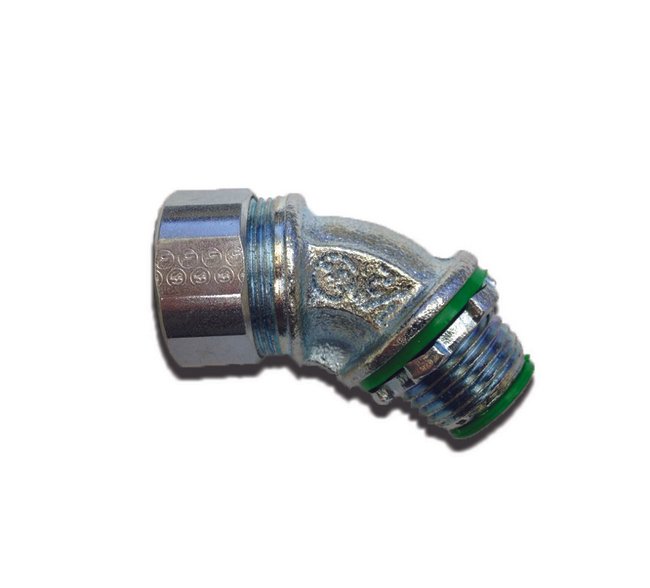

The 2-1/2 45-Degree Zinc-Plated Steel Sealtite Fitting is expertly constructed with a five-piece design, including a gland nut, sealing ring, high tensile grounding ferrule, insulated throat, and body. Ideal for liquid-tight conduit installations, this fitting is corrosion-resistant, safeguarding against moisture and oils. It is IP 66/67 rated when used with approved conduit, suitable for both exposed and concealed locations, and compliant with NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2 standards. With UL Listing, CSA Certification, and RoHS/WEEE compliance, this fitting is a reliable choice for industrial applications.
Product Specifications

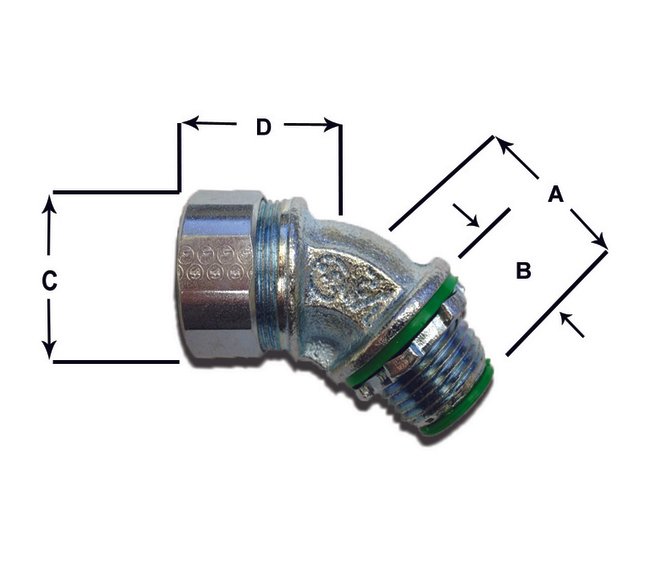

Specifications Connector Type
45°
Specifications Dimension A
4.75 in
Specifications Dimension B
1.50 in
Specifications Dimension C
4.00 in
Specifications Electrical Trade Size
2-1/2 in
Specifications Ko Size
2-1/2 in
Specifications Thread Type
NPT
Specifications Type
Zinc Plated Steel
