2-1/2'' Aluminum Line Vac Conveyor
2-1/2'' Aluminum Line Vac Conveyor
SKU:LIN-3413ce
Efficiently convey various materials with the 2-1/2'' Aluminum Line Vac Conveyor. Durable, compact design for high performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
2-1/2'' Aluminum Line Vac Conveyor
$599.99
Quantity: 1
Claim Your Seller Account
2-1/2'' Aluminum Line Vac Conveyor
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

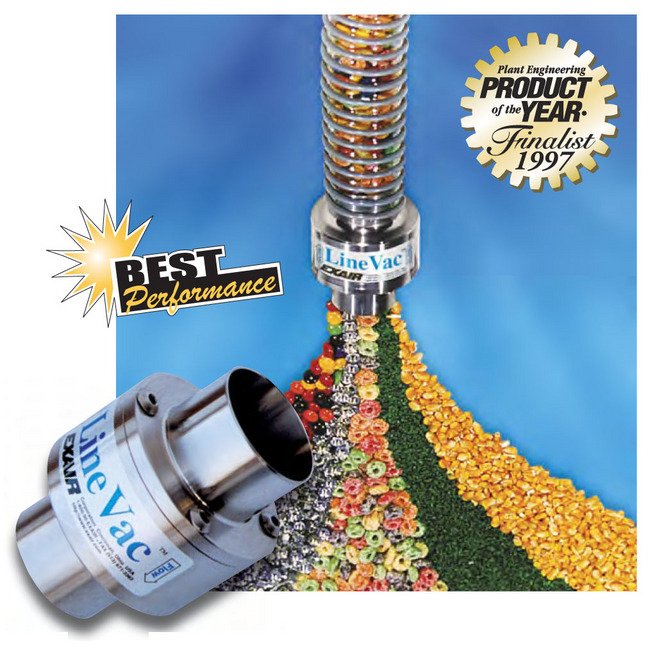

The 2-1/2'' Aluminum Line Vac Conveyor is a versatile solution for efficiently conveying plastic pellets, textiles, small parts, and more. This compressed air-operated conveyor features a compact design with significant throughput capability. With aluminum construction, it offers durability and reliability, making it ideal for various transfer applications. Suitable for institutional procurement requirements, this conveyor ensures high performance and ease of integration, meeting the standards for material conveying, part transfer, and waste removal.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
58.50 SCFM | 1656 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Fair
Specifications Dimension E
2.13 in | 54 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.44 in | 37 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.38 in | 60 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
2.50 in | 64 mm
Specifications Inlet Size
2-1/2 in | 64 mm
Specifications Inside Diameter
2.25 in | 57 mm
Specifications Material
Aluminum
Specifications Outlet Diameter
2-1/2 in | 64 mm
Specifications Outside Diameter
3.75 in | 95 mm
Specifications Overall Length
4.38 in | 111 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Vacuum Pressure
-23.5 inWc | -6 kPa
