2 1/2" Bolt Type Shackles Bow Type Hot Dip Galvanized
2 1/2" Bolt Type Shackles Bow Type Hot Dip Galvanized
SKU:WIR-085e0c
Durable 2 1/2" Bolt Type Shackles Bow Type, hot dip galvanized, meets Federal standards. 55-ton WLL.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

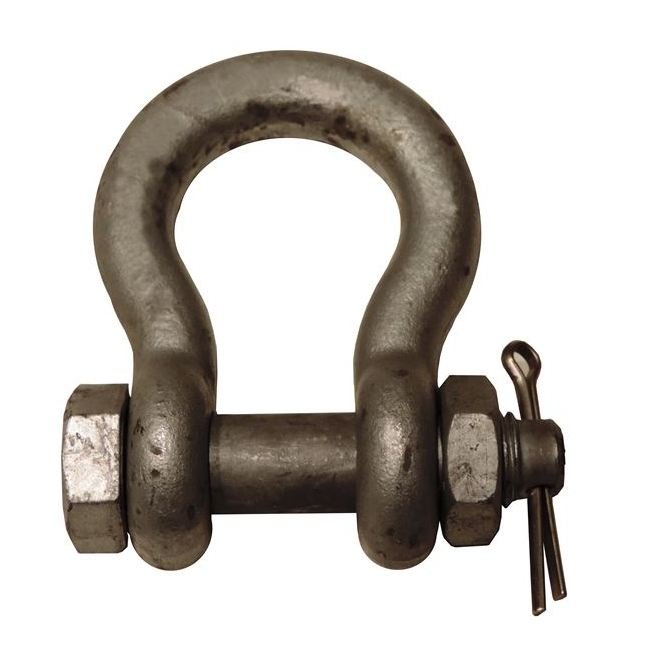

The 2 1/2" Bolt Type Shackles Bow Type Hot Dip Galvanized are forged to meet Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3 standards. With a 55-ton working load limit and a 98.25 lbs weight, these shackles are quenched, tempered, and feature an alloy pin for enhanced strength and durability. Ideal for lifting or towing applications, these shackles offer a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit.

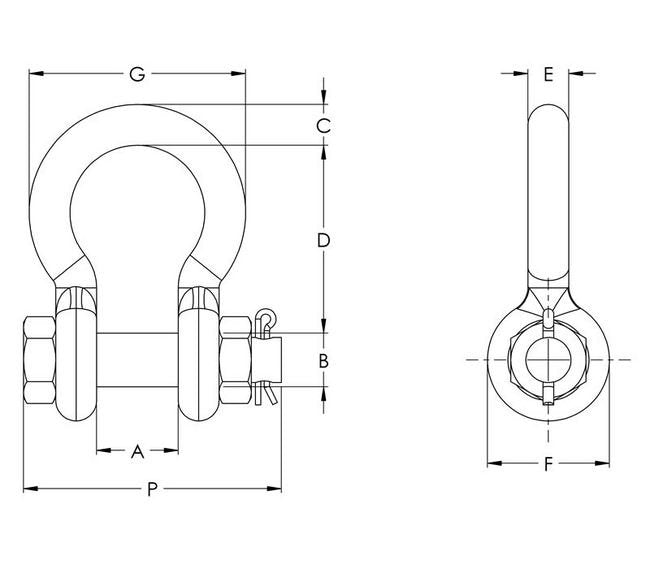

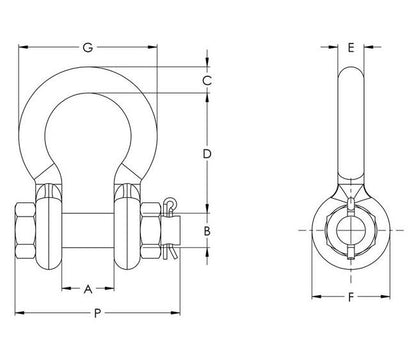

Product Specifications
Specifications A In
4.13
Specifications B In
2.75
Specifications Cross Reference
SAS212
Specifications C In
3.13
Specifications D In
10.5
Specifications E In
2.62
Specifications F In
5.69
Specifications G In
12.87
Specifications Nominal Size In
2 1/2
Specifications P In
13.56
Specifications Weight Lbs
98.25
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332722
PSC
5306
