2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

SKU:WIR-c15f59

High-quality 2 1/2" Bolt Type Shackles for lifting and towing applications. Compliant with Federal specifications, 55-ton WLL.

Regular price $1,899.99
Regular price Sale price $1,899.99
Sale

Initiate Order

2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

$1,899.99

Quantity: 1

Claim Your Seller Account

2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

2 1/2" Bolt Type Shackles, Hot Dip Galvanized, Drop Forged

$1,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 2 1/2" Bolt Type Shackles Dee Type (Chain) are expertly crafted to meet the rigorous demands of lifting and towing applications. Compliant with Federal Specification RR-C-271D, Type IVA or Type IVB Grade A, Class 3 standards, these shackles boast a superior quenched and tempered design with an alloy pin for maximum durability. With a 55-ton working load limit, these shackles provide a reliable solution for heavy-duty tasks. Ideal for wire rope loops, these shackles guarantee optimum performance and safety.

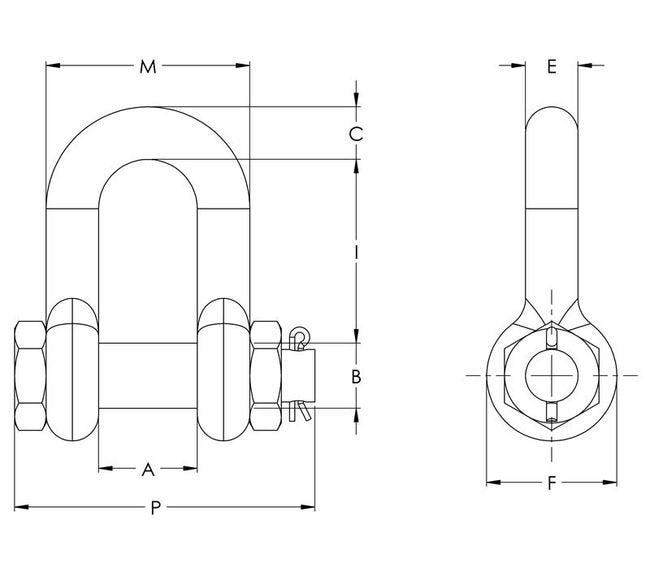

Product Specifications

Specifications A In
4.13
Specifications B In
2.75
Specifications C In
3.13
Specifications D In
10.5
Specifications E In
2.62
Specifications F In
5.69
Specifications I In
8
Specifications M In
9.38
Specifications Nominal Size In
2 1/2
Specifications P In
13.56
Specifications Weight Lbs
85
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332722
PSC
5306
