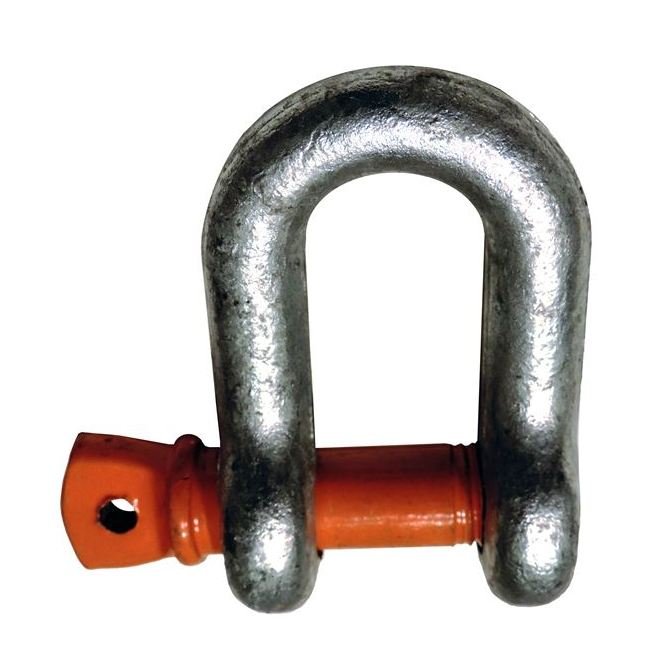

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

SKU:WIR-99b98e

High-quality 2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged. Conforms to Federal Specs RR-C-271D. Ultimate load 6 times working load limit. Ideal for lifting and towing. WLL: 55 tons.

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

$249.99

Quantity: 1

Claim Your Seller Account

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 2 1/2" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged boasts a high-quality construction that conforms to Federal Specification RR-C-271D, Type IVB, Grade A, Class 2. With an ultimate load 6 times its working load limit and a quenched and tempered alloy pin, this shackle ensures reliability and safety in lifting and towing operations. Weighing 71.75 lbs and featuring precise dimensions, this shackle is designed to meet the demands of heavy-duty applications with a working load limit of 55 tons.

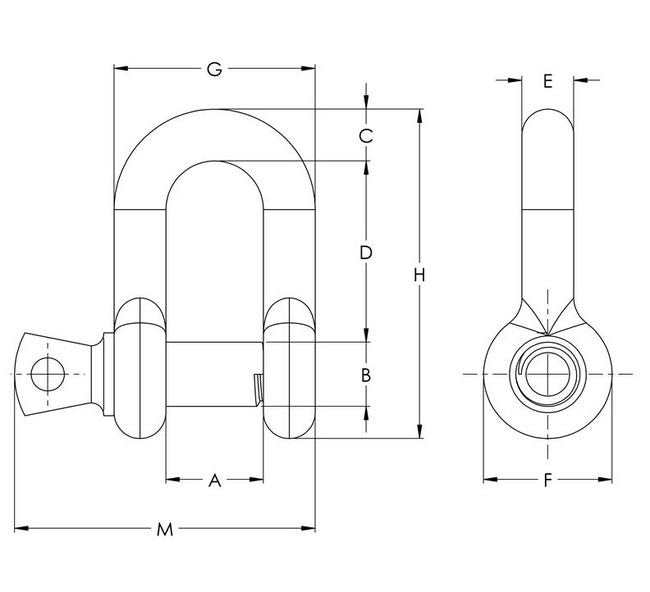

Product Specifications

Specifications A In
4.13
Specifications B In
2.75
Specifications C In
2.62
Specifications D In
8
Specifications E In
2.62
Specifications F In
5.69
Specifications G In
9.38
Specifications H In
14.84
Specifications M In
13
Specifications Nominal Size In
2 1/2
Specifications Weight Lbs
71.75
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332999
PSC
5340
