2-1/2" Extreme Temperature LFMC Conduit - Type HCX, Liquid Tight, Zero Halogen Jacket
2-1/2" Extreme Temperature LFMC Conduit - Type HCX, Liquid Tight, Zero Halogen Jacket
SKU:LIQ-52772a
High-quality 2-1/2" Extreme Temperature LFMC Conduit with crush-resistant steel core, sunlight-resistant jacket, and RoHS/WEEE compliance.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
2-1/2" Extreme Temperature LFMC Conduit - Type HCX, Liquid Tight, Zero Halogen Jacket
$229.99
Quantity: 1
Claim Your Seller Account
2-1/2" Extreme Temperature LFMC Conduit - Type HCX, Liquid Tight, Zero Halogen Jacket
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

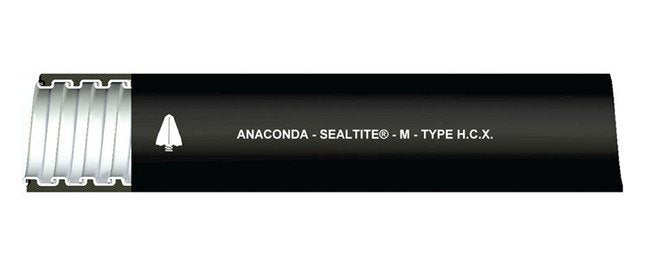

The 2-1/2" Extreme Temperature LFMC Conduit (Type HCX) is designed with a hot-dipped zinc galvanized steel core for superior crush and corrosion resistance. Its durable thermoplastic rubber jacket is sunlight-resistant, heat-resistant, and offers excellent protection against oil and chemical breakdown. This conduit is RoHS and WEEE compliant, making it an ideal choice for extreme temperature applications.
Product Specifications
Specifications Approx Inside Bend Radius
9.5 in
Specifications Approx Weight Per 100 Ft
182 lbs
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
2-1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.480-2.505 in | 62.992-63.627 mm
Specifications Jacket Benefits
High Heat Halogen Free
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
50 ft
Specifications Optional Colors
None
Specifications Outside Diameter
2.840-2.875 in | 72.136-73.025 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
