2-1/2 in. Jaw Length Parallel Jaw Grip for Cable Diameter 0.157 in.
2-1/2 in. Jaw Length Parallel Jaw Grip for Cable Diameter 0.157 in.
SKU:PUL-52c87d
Versatile 2-1/2 in. Jaw Length Parallel Jaw Grip for efficient and safe cable pulling.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2-1/2 in. Jaw Length Parallel Jaw Grip for Cable Diameter 0.157 in.
$89.99
Quantity: 1
Claim Your Seller Account
2-1/2 in. Jaw Length Parallel Jaw Grip for Cable Diameter 0.157 in.
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

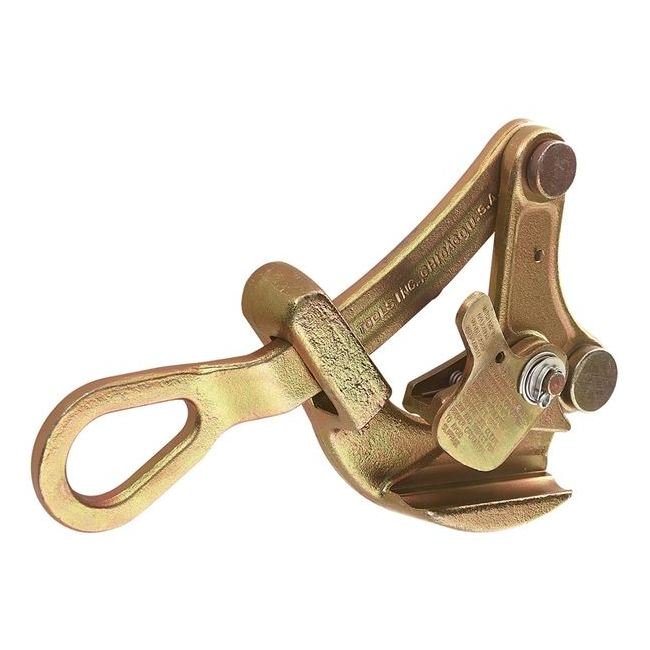

The 2-1/2 in. Jaw Length Parallel Jaw Grip is a versatile solution for pulling a wide range of cable sizes and types with precision and efficiency. Its innovative design features a round inside-jaw contour that minimizes conductor damage, while the serrated lower jaw ensures a secure grip on insulated cables and conductors. The grip includes a safety latch to prevent accidental disengagement from the cable. With a safe load capacity of 2041 kg (4500 lb), this parallel jaw grip is a reliable choice for various wire pulling applications, ensuring safety and performance.
Product Specifications
Dimensions Cable Diameter
0.157 to 0.875 in | 3.98 to 22.22 mm
Dimensions Jaw Length
2-1/2 in | 63.5 mm
Features
"Lightweight, compact grips pull an exceptionally wide range of cable sizes and types."Designed with a round inside-jaw contour for maximum contact to minimize conductor damage.Lower jaw is serrated to firmly grip insulated cables and conductors.Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable."Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks.""Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.""When used on/near energized lines, ground, insulate, or isolate grip before pulling."Do not exceed rated capacity."Grips are to be used for temporary installation, not for permanent anchorage."Spring
Specifications Safe Load Max
2041 kg | 4500 lb
Specifications Spring
Y
Specifications Type
Parallel Jaw Grip
Specifications Unspsc Code
27111712
Specifications Upc Code
92644471759
Specifications Weight
1.2 kg | 2.6 lb
