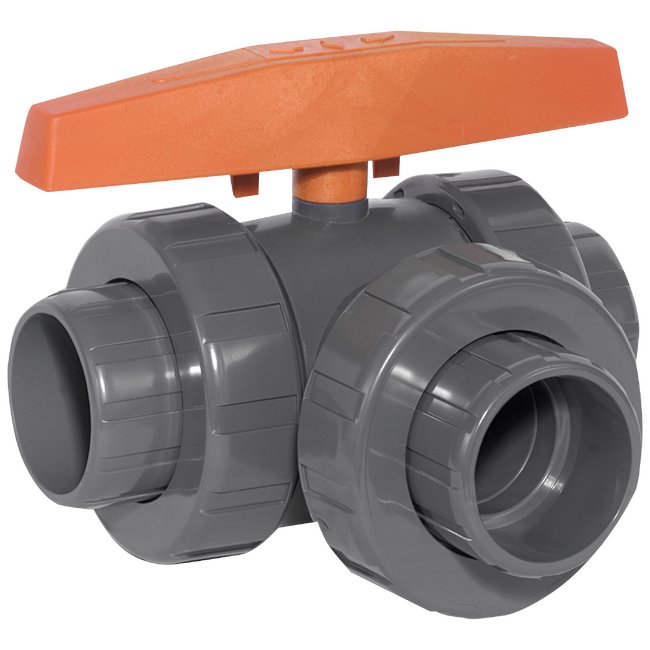

2-1/2" PVC 3-Way Lateral True Union Ball Valve w/ EPDM Seals

Name: 2-1/2" PVC 3-Way Lateral True Union Ball Valve w/ EPDM Seals
Brand: Hayward Flow Control
SKU: TRU-5a46e8
Price: 89.99 USD
Availability: OutOfStock

SKU:TRU-5a46e8

Versatile 2-1/2" PVC True Union Ball Valve with EPDM seals for efficient flow diversion in institutional and consumer applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 2-1/2" PVC 3-Way Lateral True Union Ball Valve with EPDM seals is a versatile solution for diverting flow efficiently. Ideal for institutional and consumer applications, this valve allows diversion from the center port to either side without an OFF position. Designed for reliability, it is rated @ 150 PSI, crafted from durable PVC, and features EPDM seals for enhanced performance. With socket end connections for hassle-free installation, this valve ensures seamless operations in various settings.

Product Specifications

Specifications A

6.40 in | 162.56 mm

Specifications B

5.90 in | 149.86 mm

Specifications Body Material

PVC

Specifications C

7.59 in | 192.79 mm

Specifications E

10.50 in | 266.70 mm

Specifications End Connection

Socket

Specifications F

8.68 in | 220.47 mm

Specifications G

15.92 in | 404.37 mm

Specifications H

5.35 in | 135.89 mm

Specifications Seals

EPDM

Specifications Size

2-1/2"

2-1/2" PVC 3-Way Lateral True Union Ball Valve w/ EPDM Seals
