2.125 in x 1.250 in Standard Chip Deflector
2.125 in x 1.250 in Standard Chip Deflector
SKU:STA-64473d
Durable 16-gauge CRS chip deflector for machine way protection and added strength.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

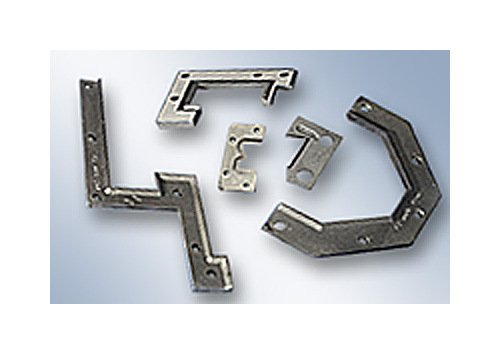

The 2.125 in x 1.250 in Standard Chip Deflector by Bermar Associates, Inc. is expertly crafted from 16 gauge Cold Rolled Steel (CRS), providing exceptional durability and hot chip protection. Designed to safeguard machine ways and way wipers from metal chips, this deflector can be customized to fit your specific requirements. Easy to mount following precise instructions, this deflector ensures added strength and a prolongation of equipment lifespan.
Product Specifications

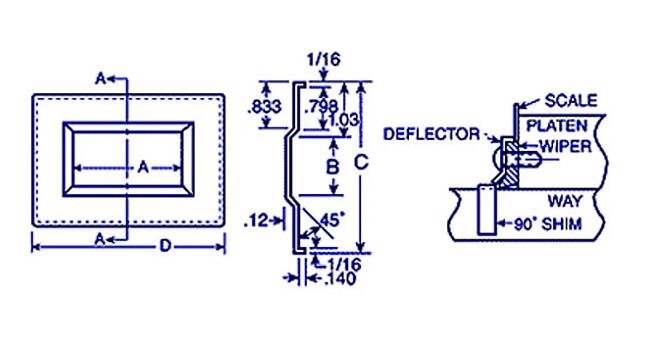

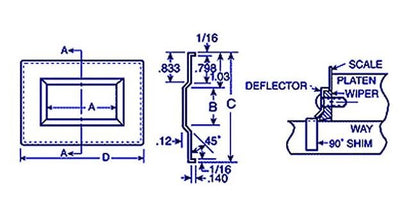

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
2.125 in
Specifications Dimension B
1.250 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
