2.2L Food Transfer Pump with 2.2L Discharge Rate

2.2L Food Transfer Pump with 2.2L Discharge Rate

FOO-4d5e5c

Transfer high-viscosity foods efficiently with the 2.2L Food Transfer Pump, perfect for institutional kitchens and food processing facilities.

$5,699.99
$5,699.99
Sale

Initiate Order

2.2L Food Transfer Pump with 2.2L Discharge Rate

2.2L Food Transfer Pump with 2.2L Discharge Rate

$5,699.99

Quantity: 1

Claim Your Seller Account

2.2L Food Transfer Pump with 2.2L Discharge Rate

2.2L Food Transfer Pump with 2.2L Discharge Rate

$5,699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

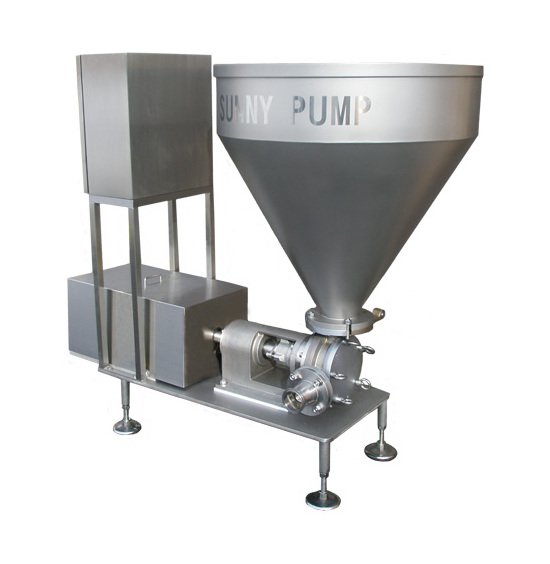

The 2.2 Liter Discharge Rate Per Revolution Food Transfer Pump is a reliable solution for transferring various high-viscosity food materials such as minced meat without compromising quality. With a rotary vane design to ensure smooth material feeding, constant pressure device for consistent quality control, and easy speed adjustment capabilities, this pump meets the demands of institutional kitchens and food processing facilities. It offers exceptional performance, sanitation standards, and efficiency, making it ideal for hamburger steak, dumplings, fish paste, and more.

Product Specifications

Features Features

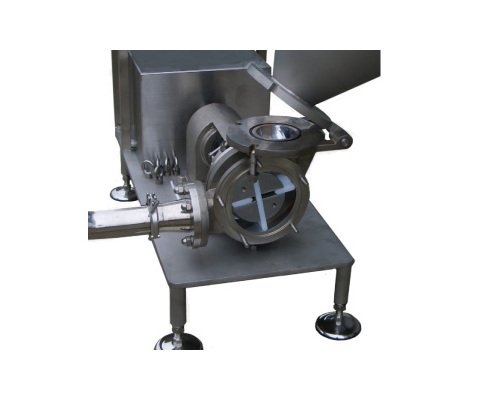

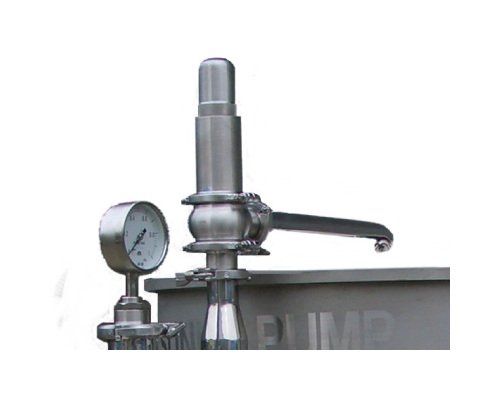

A Rotary Vane Type Machine That is Gentle with Even Coarse Minced MeatThe vane pump ensures smooth feeding of the raw material without crushing the meat. Plating finish on the inside of the pump housing and UHMWPE (Ultrahigh Molecular Weight Polyethylene) vane ensure longer life of the housing. The inside area where the raw material passes can be easily disassembled for cleaning, maintenance allowing a high standard of sanitation.Relief Valve ModelConstant pressure device will prevent deterioration in the meat quality and it will improve stuffing accuracy during stuffing. We also have SPS-V series with relief valve available as a low price model.Simple Speed SettingAs the speed can be set easily by means of the inverter control and starting power is required, the pump rotates smoothly.
Note Note
Specifications and equipment are subject change without any obligation on the part of manufacturer.The above production rate is subject to change due to the conditions such as production item, factory and other conditions.Layout dimension includes dimension of optional equipment.
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Discharge Rate Per Revolution
2.2 L | 0.53 gal
Technical Specs Height For 300 Liter L Capacity Hopper
1,470 mm
Technical Specs Height For 500 Liter L Capacity Hopper
1,860 mm
Technical Specs Height For 900 Liter L Capacity Hopper
1,580 mm
Technical Specs Hopper Capacity
300 L | 500 L | 900 L | 132 gal | 237.8 gal | 79.3 gal
Technical Specs Length For 300 Liter L Capacity Hopper
1,820 mm
Technical Specs Length For 500 Liter L Capacity Hopper
1,820 mm
Technical Specs Length For 900 Liter L Capacity Hopper
2,220 mm
Technical Specs Maximum Discharge Rate
3,888 kg/h | 8,550 lb/hr
Technical Specs Optional Devices
Lifting DeviceReliefMagnetic FilterAgitatorResidual Detect SensorCleaning Pig System for Pipeline
Technical Specs Phase
3
Technical Specs Power
3.7 kW
Technical Specs Pump Revolution Speed
30 ~ 60 rpm
Technical Specs Stuffing Rate
3,500 kg/h | 7,700 lb/hr
Technical Specs Width For 300 Liter L Capacity Hopper
940 mm
Technical Specs Width For 500 Liter L Capacity Hopper
940 mm
Technical Specs Width For 900 Liter L Capacity Hopper
1,290 mm
