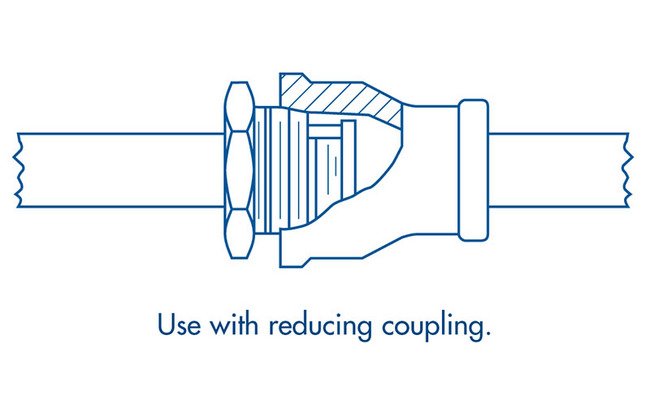

  • 2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal - Image 5
1 5
DFT Inc. →

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

INL-ad2c8e

High-quality 2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal for versatile liquid, steam, and gas control.

$199.99
$199.99
Sale

Initiate Order

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

$199.99

Quantity: 1

Claim Your Seller Account

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 2" 316 SS Basic-Check® Threaded In-Line Check Valve with Viton® Seal is a high-quality, versatile valve designed for a wide range of liquids, steam, and gases at varying pressure and temperature conditions. It features a guard cage, spring-assisted silent closing for minimal noise, and precision-lapped metal-to-metal sealing for tight shutoff. This valve is ideal for pipeline applications, OEM machinery, and diverse industries. With its stainless steel construction, easy maintenance, and various available soft seat materials, this valve offers durability, reliability, and flexibility for different applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile
Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
316 SS/Viton®
Materials Of Construction Spring
316 SS
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
7.00 lb | 3.2 kg
Specifications Cold Working Pressure
450 psig | 31.0 barg
Specifications Cv
90
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
16
Specifications Friction Loss Meter Of Pipe
4.9
Specifications Line Size Inlet Fnpt A
2.00 in
Specifications Outside Thread Mnpt B
4.00 in
Specifications Series
Basic-Check®
Specifications Size
2.00 in | DN 50
Specifications Style
BSSH6
Specifications Temperature Rating
-40 to 400 ºF | -40 to 204.44 ºC
Specifications Valve Cracking Pressure
0.1 psi | 0.007 bar | 2.6 in.water | 66 mm.water | 4.8 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
315 psig
