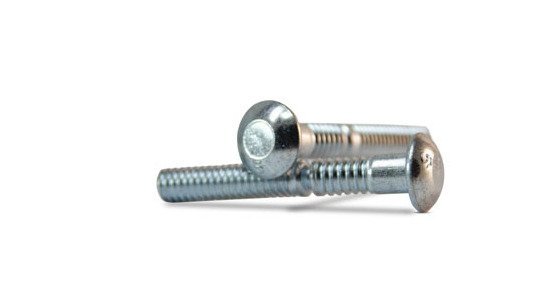

2.371 in Stainless Steel Truss Head Lock Bolt
2.371 in Stainless Steel Truss Head Lock Bolt
SKU:STA-b98ba9
High-quality Stainless Steel Truss Head Lock Bolt for secure and durable fastening.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
2.371 in Stainless Steel Truss Head Lock Bolt
$24.99
Quantity: 1
Claim Your Seller Account
2.371 in Stainless Steel Truss Head Lock Bolt
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2.371 Inch Stainless Steel Standard Truss Head Lock Bolt is a premium fastening solution crafted from high-quality stainless steel. With a head diameter of 0.828 to 0.922 inches, a maximum mandrel length of 2.371 inches, and impressive shear and tensile strengths, this bolt ensures secure and reliable fastening. Its truss head design provides a smooth and finished appearance while offering durability and precision. Ideal for a wide range of applications requiring strength and corrosion resistance.
Product Specifications
Dimensions Diameter
3/8 in
Dimensions Dimension A
0.380 to 0.385 in
Dimensions Maximum Grip Range
0.250 in
Dimensions Maximum Head Diameter
0.922 in
Dimensions Maximum Hole Diameter
0.391 in
Dimensions Maximum Hole Size
0.391 in
Dimensions Maximum Length
2.539 in
Dimensions Maximum Mandrel Length
2.371 in
Dimensions Minimum Grip Range
0.500 in
Dimensions Minimum Head Diameter
0.828 in
Dimensions Minimum Hole Diameter
0.381 in
Dimensions Minimum Length
2.398 in
Dimensions Minimum Mandrel Length
2.246 in
Dimensions Minimum Shear Strength
3606 lbf
Dimensions Minimum Tensile Strength
2767 lbf
Dimensions Nominal Drill Side
0.386 in
Dimensions Nominal Head Diameter
0.875 in
Dimensions Nominal Mandrel Length
2.309 in
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head B
0.828 to 0.922 in
Technical Specs Head C
0.152 to 0.168 in
Technical Specs Head Shape
Truss Head
Technical Specs Material
Stainless Steel
